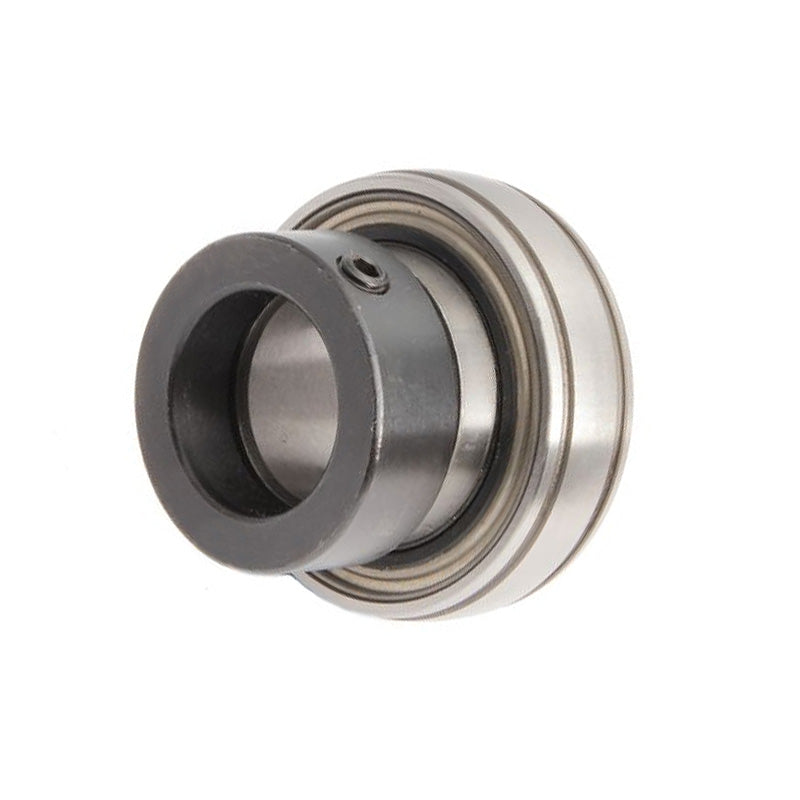

• RHP 1045-45DECG Spherical Outer Full Width Bearing Insert 45mm Bore 85mm Outside Diameter
1 1

SKU: 1045-45DECG-RHP

RHP 1045-45DECG Spherical Outer Full Width Bearing Insert 45mm Bore 85mm Outside Diameter

RHP 1045-45DECG Spherical Outer Full Width Bearing Insert 45mm Bore 85mm Outside Diameter
CHF 69.00 ex VAT
CHF 69.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 54.87
20+ CHF 51.79
30+ CHF 51.17
40+ CHF 50.56
50+ CHF 49.94
75+ CHF 49.32
100+ CHF 46.24
200+ CHF 45.63
250+ CHF 45.01
500+ CHF 44.39
1000+ CHF 43.16
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
RHP 1000-DEC-G Series: Full width bearing insert with spherical outer race and eccentric collar and grub screw to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required
Benefits: Cost effective replacement insert, re-lubricatable, eccentric collar fixing
Brand / Quality:
RHP - High Quality
Inside Diameter:
45mm
Outside Diameter:
85mm
Style:
1045
Technical
Bore 45mm
D 85mm
C 19mm
B3 56.34mm
s2 21.46mm
d2 63.5mm
r 1mm
Dynamic load Cr 32500 N
Static load Cor 20500 N
Rec max speed 3700 rpm
Weight 1.08 kg
