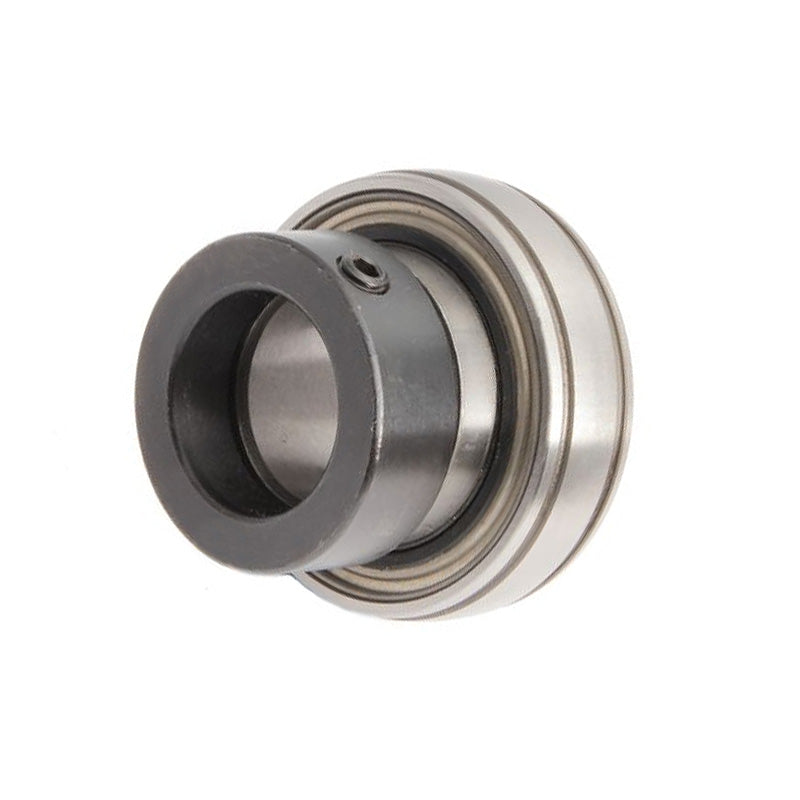

• RHP 1050-1-15/16DECG Spherical Outer Full Width Bearing Insert 1-15/16 inch Bore 90mm Outside Diameter
1 1

SKU: 1050-1.15/16DECG-RHP

RHP 1050-1-15/16DECG Spherical Outer Full Width Bearing Insert 1-15/16 inch Bore 90mm Outside Diameter

RHP 1050-1-15/16DECG Spherical Outer Full Width Bearing Insert 1-15/16 inch Bore 90mm Outside Diameter
CHF 80.00 ex VAT
CHF 80.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 63.33
20+ CHF 59.77
30+ CHF 59.06
40+ CHF 58.35
50+ CHF 57.64
75+ CHF 56.93
100+ CHF 53.37
200+ CHF 52.66
250+ CHF 51.95
500+ CHF 51.23
1000+ CHF 49.81
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
RHP 1000-DEC-G Series: Full width bearing insert with spherical outer race and eccentric collar and grub screw to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required
Benefits: Cost effective replacement insert, re-lubricatable, eccentric collar fixing
Brand / Quality:
RHP - High Quality
Inside Diameter:
49.21mm = 1.937 (1-15/16) inch
Outside Diameter:
90mm
Style:
1050
Technical
Bore 1-15/16 inch
D 3.5433 inch
C 0.787 inch
B3 2.469 inch
s2 0.97 inch
d2 2.75 inch
r 0.039 inch
Dynamic load Cr 35000 N
Static load Cor 23200 N
Rec max speed 3400 rpm
Weight 1.19 kg
