SKU: 1050-2G-RHP

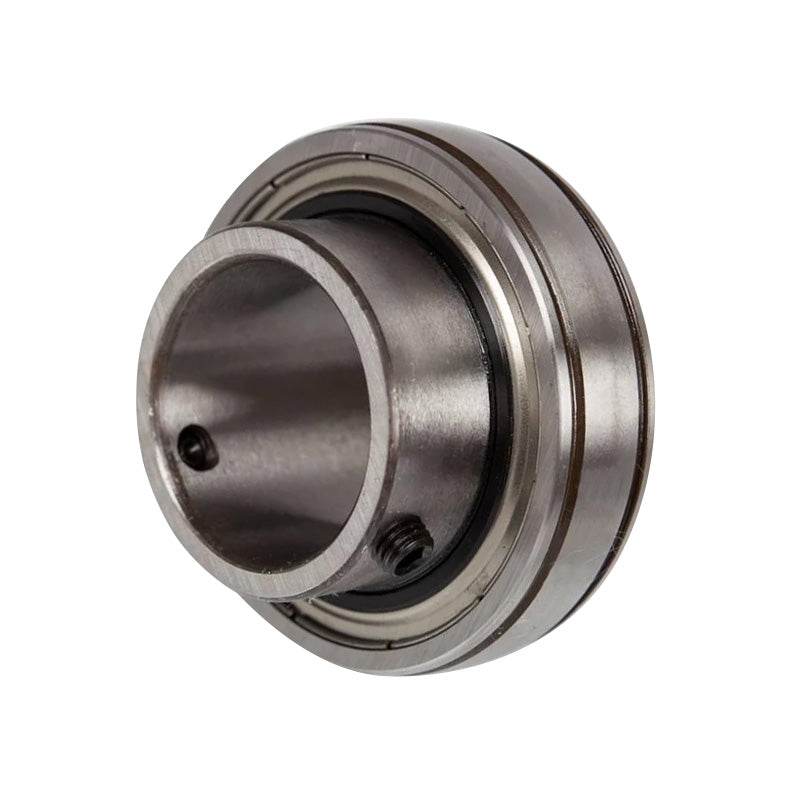

RHP 1050-2G Spherical Outer Full Width Bearing Insert 2 inch Bore 90mm Outside Diameter
RHP 1050-2G Spherical Outer Full Width Bearing Insert 2 inch Bore 90mm Outside Diameter
Regular price
CHF 61.00
ex VAT
Regular price
Sale price
CHF 61.00
ex VAT
In stock
Price Break
10+
CHF 47.84
20+
CHF 45.16
30+
CHF 44.62
40+
CHF 44.08
50+
CHF 43.54
75+
CHF 43.01
100+
CHF 40.32
200+
CHF 39.78
250+
CHF 39.24
500+
CHF 38.71
1000+
CHF 37.63
Description
Description
|
RHP 1000 G Series: Full width bearing insert with spherical outer race and and 2 grub screws 120 degrees apart to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required Benefits: Cost effective replacement insert, re-lubricatable, grub screw fixing |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Outside Diameter:
- 90mm
- Style:
- 1050
Technical
Technical
| Bore | 2 inch |
|---|---|
| D | 3.5433 inch |
| C | 0.787 inch |
| B | 2.031 inch |
| s | 0.752 inch |
| d1 | 2.449 inch |
| M | 0.352 inch |
| r | 0.039 inch |
| Dynamic load Cr | 35000 N |
| Static load Cor | 23200 N |
| Rec max speed | 3400 rpm |
| Weight | 0.91 kg |
