SKU: 1050KG-RHP
RHP 1050KG Spherical Outer Taper Bore Bearing Insert 45mm Shaft 90mm Outside Diameter without Sleeve
RHP 1050KG Spherical Outer Taper Bore Bearing Insert 45mm Shaft 90mm Outside Diameter without Sleeve
Regular price
CHF 54.00
ex VAT
Regular price
Sale price
CHF 54.00
ex VAT
In stock
Price Break
10+
CHF 42.64
20+
CHF 40.25
30+
CHF 39.77
40+
CHF 39.29
50+
CHF 38.81
75+
CHF 38.33
100+
CHF 35.94
200+
CHF 35.46
250+
CHF 34.98
500+
CHF 34.50
1000+
CHF 33.54
Share this product
Description
Description
|
RHP 1100K Series: Taper bore bearing insert with parallel outer race. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required. you will need a taper sleeve (available separately) this makes the job of fitting simple as the bearing can be positioned easily prior to locking to the shaft. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 90mm
- Style:
- 1050

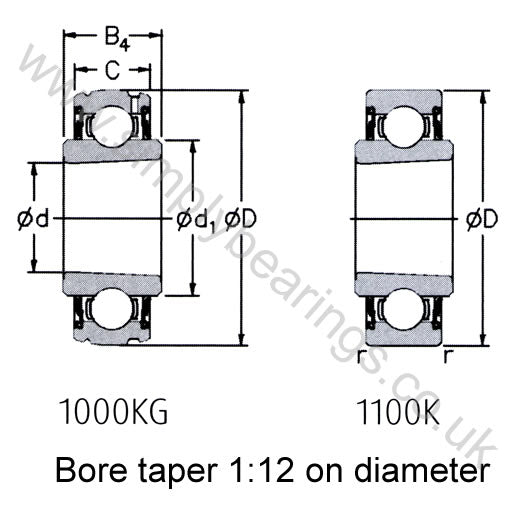

Technical
Technical
| Bore | 45mm |
|---|---|
| D | 90mm |
| C | 20mm |
| B4 | -mm |
| B5 | 42mm |
| B6 | -mm |
| d | 50mm |
| d1 | 62.2mm |
| d4 | 70mm |
| r | 1mm |
| Dynamic load Cr | 35000 N |
| Static load Cor | 23200 N |
| Rec max speed | 3400 rpm |
| Weight | 0.75 kg |
| Useable taper sleeve | <a href="advanced_search_result.php?keywords=H310+tapersleeve">H310 Click Here</a> |
