SKU: 105120/105165-GAMET

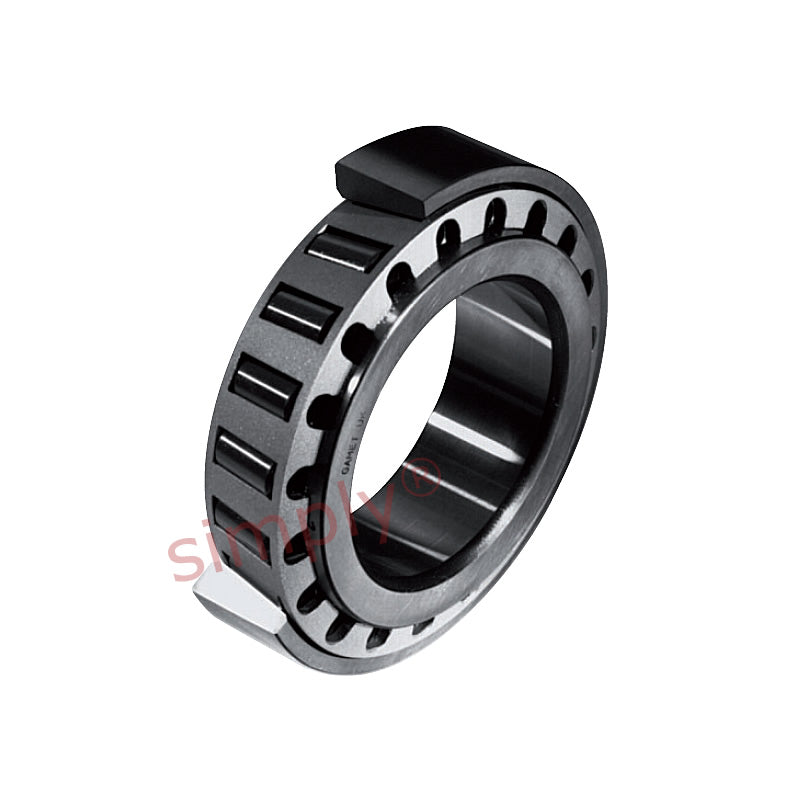

Gamet 105120/105165 Super Precision Tapered Roller Bearing Plain Cup Type 120x165x31mm - Allow 7-10 Days
Gamet 105120/105165 Super Precision Tapered Roller Bearing Plain Cup Type 120x165x31mm - Allow 7-10 Days
Regular price
CHF 924.00
ex VAT
Regular price
Sale price
CHF 924.00
ex VAT
In stock
Price Break
4+
CHF 735.32
9+
CHF 694.01
19+
CHF 685.75
29+
CHF 677.48
39+
CHF 669.22
49+
CHF 660.96
59+
CHF 619.65
69+
CHF 611.39
79+
CHF 603.13
89+
CHF 594.86
99+
CHF 578.34
Description
Description
|
Super Precision Tapered Roller Bearing Plain Cup Type: Designed and manufactured in the UK by one of the worlds leading Precision Bearings companies. Made from high quality bearing materials, the basic single row bearing can be used in light to medium loaded applications, and provides a simple, cost-effective arrangement. Cone Bore Run-out tolerances range from 0.5 microns to 1.5 microns. Quality assured to BS EN ISO 9001:2000 standards. Benefits: Cost-effective, high quality bearing materials, quality assured. |
- Brand / Quality:
- Gamet - High Quality
- Inside Diameter:
- 120mm
- Outside Diameter:
- 165mm
- Width:
- 31mm
Technical
Technical
| d | 120.000mm |
|---|---|
| D | 165.000mm |
| T | 28.00mm |
| C | 23.00mm |
| B | 31.00mm |
| F | 5.00mm |
| da | 136mm |
| Da | 154mm |
| r | 2.00mm |
| R | 2.50mm |
| Radial static stiffness | 139 daN/µ |
| Axial static stiffness | 22 daN/µ |
| Radial basic rating 10,000hrs@500rpm | 2490 daN |
| Axial basic rating 10,000hrs@500rpm | 1205 daN |
| Max speed | 3900 rpm |
| Weight | 1.580kg |
| Cone | 105120 |
| Cup | 105165 |
