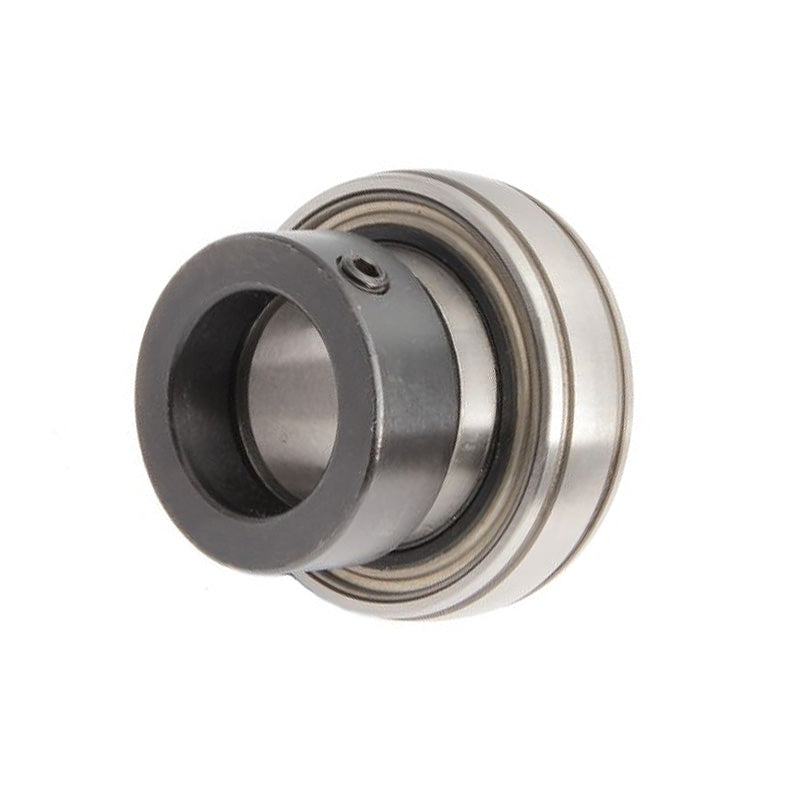

• RHP 1055-55DECG Spherical Outer Full Width Bearing Insert 55mm Bore 100mm Outside Diameter
1 1

SKU: 1055-55DECG-RHP

RHP 1055-55DECG Spherical Outer Full Width Bearing Insert 55mm Bore 100mm Outside Diameter

RHP 1055-55DECG Spherical Outer Full Width Bearing Insert 55mm Bore 100mm Outside Diameter
CHF 100.00 ex VAT
CHF 100.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 79.02
20+ CHF 74.58
30+ CHF 73.70
40+ CHF 72.81
50+ CHF 71.92
75+ CHF 71.03
100+ CHF 66.59
200+ CHF 65.70
250+ CHF 64.82
500+ CHF 63.93
1000+ CHF 62.15
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
RHP 1000-DEC-G Series: Full width bearing insert with spherical outer race and eccentric collar and grub screw to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required
Benefits: Cost effective replacement insert, re-lubricatable, eccentric collar fixing
Brand / Quality:
RHP - High Quality
Inside Diameter:
55mm
Outside Diameter:
100mm
Style:
1055
Technical
Bore 55mm
D 100mm
C 21mm
B3 71.44mm
s2 27.82mm
d2 76.2mm
r 1.5mm
Dynamic load Cr 43500 N
Static load Cor 29200 N
Rec max speed 3100 rpm
Weight 1.4 kg
