SKU: 1065-60G-RHP

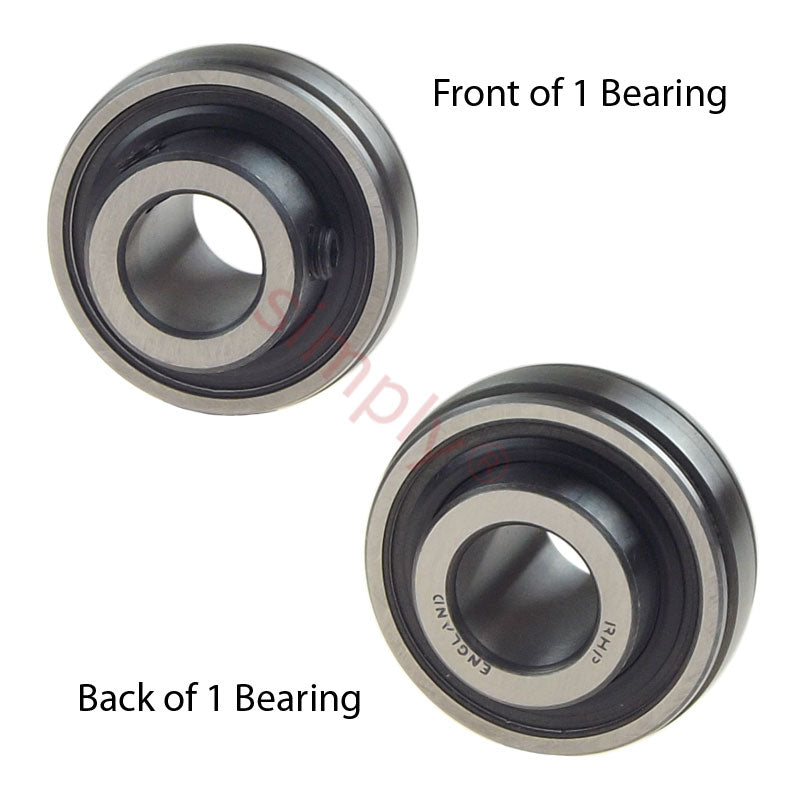

RHP 1065-60G Spherical Outer Full Width Bearing Insert 60mm Bore 120mm Outside Diameter
RHP 1065-60G Spherical Outer Full Width Bearing Insert 60mm Bore 120mm Outside Diameter
Regular price
CHF 156.84
ex VAT
Regular price
Sale price
CHF 156.84
ex VAT
In stock
Price Break
10+
CHF 139.59
19+
CHF 131.75
29+
CHF 130.18
39+
CHF 128.61
49+
CHF 127.04
74+
CHF 125.47
99+
CHF 117.63
199+
CHF 116.06
249+
CHF 114.49
499+
CHF 112.92
999+
CHF 109.79
Couldn't load pickup availability
Description
Description
|
RHP 1000 G Series: Full width bearing insert with spherical outer race and and 2 grub screws 120 degrees apart to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required Benefits: Cost effective replacement insert, re-lubricatable, grub screw fixing |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 120mm
- Style:
- 1065
- Type:
- Spherical Outer
Technical
Technical
| Bore | 60mm |
|---|---|
| D | 120mm |
| C | 23mm |
| B | 65.07mm |
| s | 25.45mm |
| d1 | 82.4mm |
| M | 9.55mm |
| r | 1.5mm |
| Dynamic load Cr | 57500 N |
| Static load Cor | 40000 N |
| Rec max speed | 2600 rpm |
| Weight | 2.02 kg |
