SKU: 1075-2.3/4G-RHP

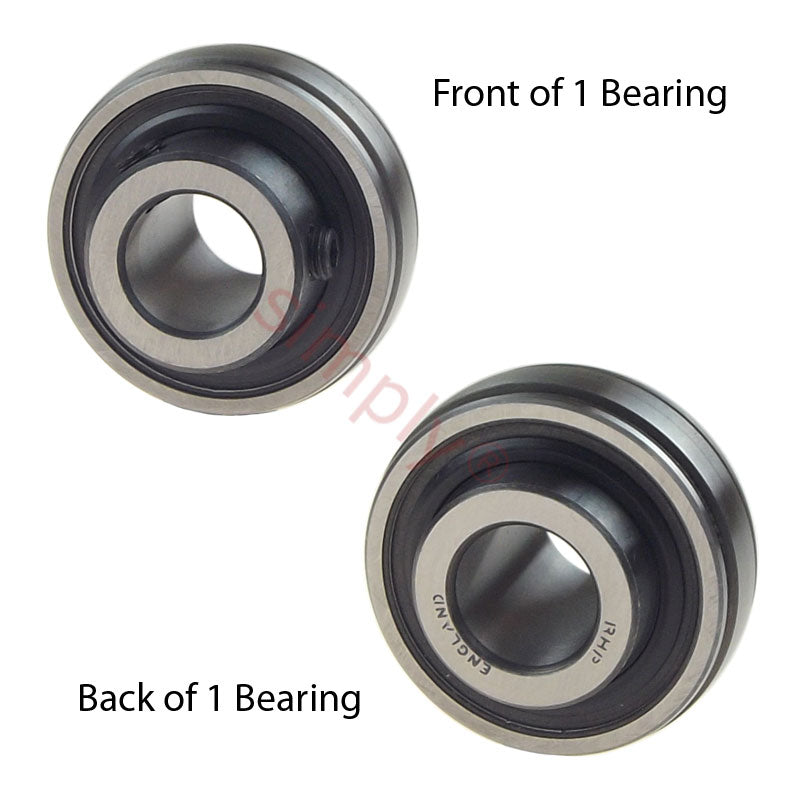

RHP 1075-2-3/4G Spherical Outer Full Width Bearing Insert 2-3/4 inch Bore 130mm Outside Diameter
RHP 1075-2-3/4G Spherical Outer Full Width Bearing Insert 2-3/4 inch Bore 130mm Outside Diameter
Regular price
CHF 182.26
ex VAT
Regular price
Sale price
CHF 182.26
ex VAT
In stock
Price Break
10+
CHF 162.21
19+
CHF 153.10
29+
CHF 151.28
39+
CHF 149.45
49+
CHF 147.63
74+
CHF 145.81
99+
CHF 136.70
199+
CHF 134.87
249+
CHF 133.05
499+
CHF 131.23
999+
CHF 127.58
Couldn't load pickup availability
Description
Description
|
RHP 1000 G Series: Full width bearing insert with spherical outer race and and 2 grub screws 120 degrees apart to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required Benefits: Cost effective replacement insert, re-lubricatable, grub screw fixing |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 69.85mm = 2.75 (2-3/4) inch
- Outside Diameter:
- 130mm
- Style:
- 1075
- Type:
- Spherical Outer
Technical
Technical
| Bore | 2-3/4 inch |
|---|---|
| D | 5.1181 inch |
| C | 0.984 inch |
| B | 3.062 inch |
| s | 1.314 inch |
| d1 | 3.622 inch |
| M | 0.502 inch |
| r | 0.059 inch |
| Dynamic load Cr | 66000 N |
| Static load Cor | 49500 N |
| Rec max speed | 2300 rpm |
| Weight | 2.61 kg |
