SKU: 1075-75G-RHP
RHP 1075-75G Spherical Outer Full Width Bearing Insert 75mm Bore 130mm Outside Diameter
RHP 1075-75G Spherical Outer Full Width Bearing Insert 75mm Bore 130mm Outside Diameter
Regular price
CHF 172.00
ex VAT
Regular price
Sale price
CHF 172.00
ex VAT
In stock
Price Break
10+
CHF 136.34
20+
CHF 128.68
30+
CHF 127.15
40+
CHF 125.62
50+
CHF 124.09
75+
CHF 122.55
100+
CHF 114.90
200+
CHF 113.36
250+
CHF 111.83
500+
CHF 110.30
1000+
CHF 107.24
Description
Description
|
RHP 1000 G Series: Full width bearing insert with spherical outer race and and 2 grub screws 120 degrees apart to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required Benefits: Cost effective replacement insert, re-lubricatable, grub screw fixing |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 75mm
- Outside Diameter:
- 130mm
- Style:
- 1075
Technical
Technical

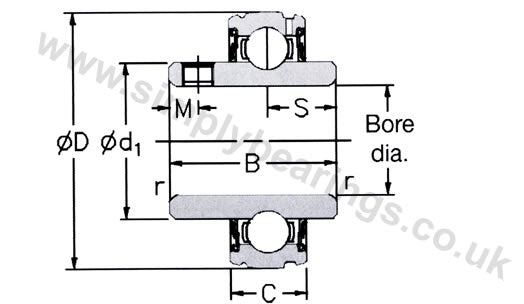

| Bore | 75mm |
|---|---|
| D | 130mm |
| C | 25mm |
| B | 77.77mm |
| s | 33.37mm |
| d1 | 92mm |
| M | 12.75mm |
| r | 1.5mm |
| Dynamic load Cr | 66000 N |
| Static load Cor | 49500 N |
| Rec max speed | 2300 rpm |
| Weight | 2.61 kg |
