SKU: 10B-1-SNX-NO30-RENOLD
Renold SYNO 10B-1-NO30 BS Simplex Chain Double Cranked Link 5/8 inch Pitch
Renold SYNO 10B-1-NO30 BS Simplex Chain Double Cranked Link 5/8 inch Pitch
Regular price
CHF 31.11
ex VAT
Regular price
Sale price
CHF 31.11
ex VAT
In stock
Price Break
10+
CHF 27.69
19+
CHF 26.13
29+
CHF 25.82
39+
CHF 25.51
49+
CHF 25.20
74+
CHF 24.89
99+
CHF 23.33
199+
CHF 23.02
249+
CHF 22.71
499+
CHF 22.40
999+
CHF 21.78
Couldn't load pickup availability
Description
Description

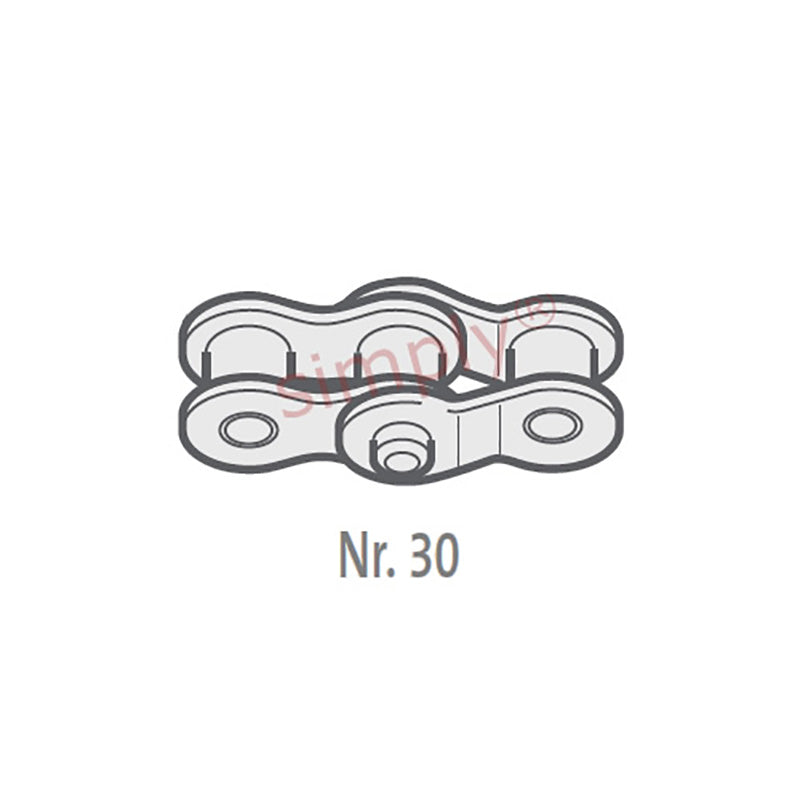

| Renold No. 30 European (BS) Simplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 15.88mm = 0.625 (5/8) inch
Technical
Technical
| Pitch (A) | 0.625 inch |
|---|---|
| Pitch (A) | 15.875mm |
| Inside Width min (B) | 9.65mm |
| Roller Diameter max (C) | 10.16mm |
| Plate Height max (D) | 14.6mm |
| Plate Width Inner max (E) | 1.55mm |
| Plate Width Outer max (F) | 1.55mm |
| Pin Diameter max (G) | 5.08mm |
| Pin Length max (H1) | 18.8mm |
| Connecting Link Extension max (J) | 2.5mm |
| ISO606 Tensile Strength min | 22200 N |
| Weight | 0.009kg/m |
