Renold SYNO 10B-2-NO30 BS Duplex Chain Double Cranked Link 5/8 inch Pitch
Renold SYNO 10B-2-NO30 BS Duplex Chain Double Cranked Link 5/8 inch Pitch
Regular price
CHF 55.00
ex VAT
Regular price
Sale price
CHF 55.00
ex VAT
In stock
Price Break
2+
CHF 43.04
5+
CHF 40.62
10+
CHF 40.14
29+
CHF 39.66
49+
CHF 39.17
75+
CHF 38.69
100+
CHF 36.27
200+
CHF 35.79
250+
CHF 35.30
500+
CHF 34.82
1000+
CHF 33.85
Description
Description

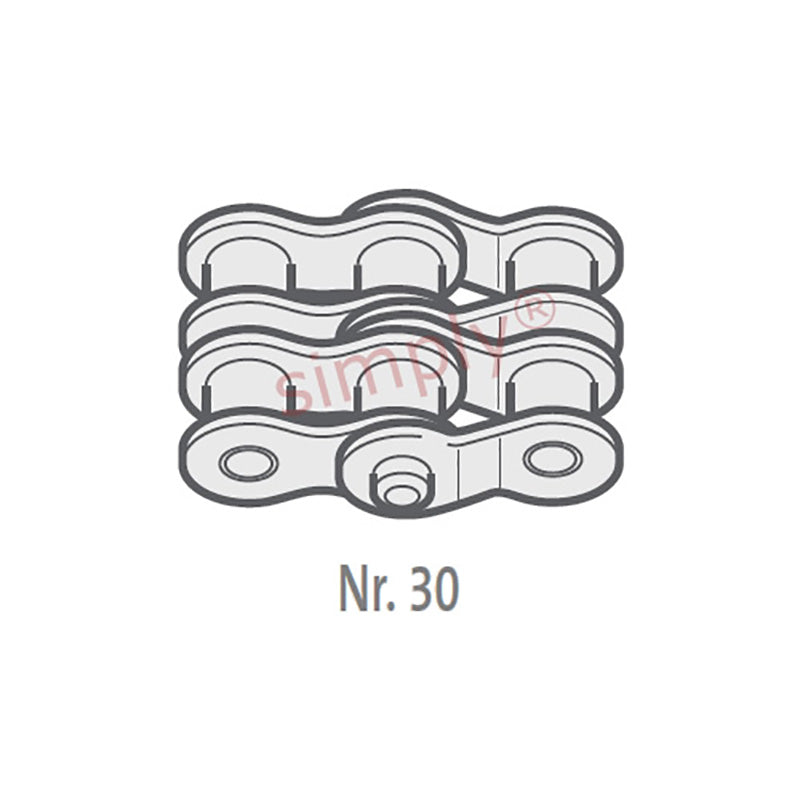

| Renold No. 30 European (BS) Duplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 15.88mm = 0.625 (5/8) inch
Technical
Technical
| Pitch (A) | 0.625 inch |
|---|---|
| Pitch (A) | 15.875mm |
| Inside Width min (B) | 9.65mm |
| Roller Diameter max (C) | 10.16mm |
| Plate Height max (D) | 14.6mm |
| Plate Width Inner max (E) | 1.55mm |
| Plate Width Outer max (F) | 1.55mm |
| Pin Diameter max (G) | 5.08mm |
| Pin Length max (H2) | 35.4mm |
| Connecting Link Extension max (J) | 2.5mm |
| Transverse Pitch nom (K) | mm |
| ISO606 Tensile Strength min | 44500 N |
| Weight | 0.009kg/m |
