SKU: 1120-20CG-RHP

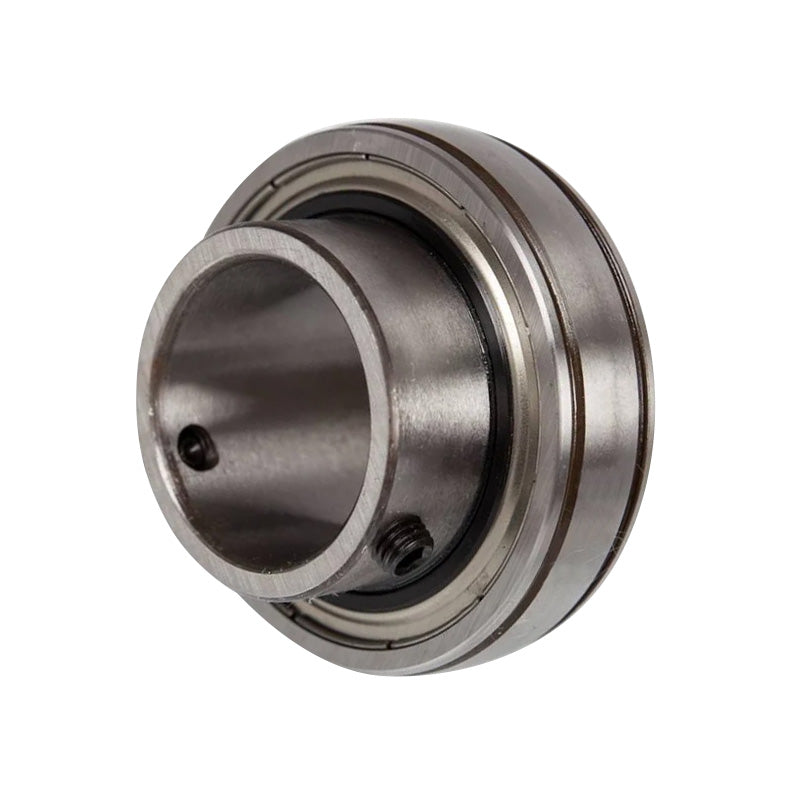

RHP 1120-20CG Full Width Snap Ring Grub Screw Bearing Insert 20mm Bore 47mm Outside Diameter
RHP 1120-20CG Full Width Snap Ring Grub Screw Bearing Insert 20mm Bore 47mm Outside Diameter
Regular price
CHF 25.00
ex VAT
Regular price
Sale price
CHF 25.00
ex VAT
In stock
Price Break
10+
CHF 19.66
20+
CHF 18.56
30+
CHF 18.34
40+
CHF 18.12
50+
CHF 17.90
75+
CHF 17.68
100+
CHF 16.57
200+
CHF 16.35
250+
CHF 16.13
500+
CHF 15.91
1000+
CHF 15.47
Share this product
Description
Description
|
RHP 1100 - CG Series Bearing Insert: This insert type is a full width sealed bearing with a parallel outer diameter and comes fitted with one snap ring (there are 2 grooves allowing its position to be moved to suit), they have the benefit of being re-lubricatable after installation. There are 2 grub screws to allow tightening against the shaft after installation. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 47mm
- Style:
- 1120
Technical
Technical
| Bore | 20mm |
|---|---|
| D | 47mm |
| D1 | 52.68mm |
| C | 15.88mm |
| C1 | 2.39mm |
| C2 | 4.17mm |
| B | 30.96mm |
| s | 12.75mm |
| d1 | 28.5mm |
| f | 1.12mm |
| M | 5.35mm |
| r | 1mm |
| r1 | 0.5mm |
| Dynamic load Cr | 12800 N |
| Static load Cor | 6650 N |
| Rec max speed | 6700 rpm |
| Weight | 0.23 kg |
