• SKF 11206TN9 Open Self Aligning Ball Bearing with Extended Inner Ring 30x62x16mm
1 1

SKU: 11206TN9-SKF

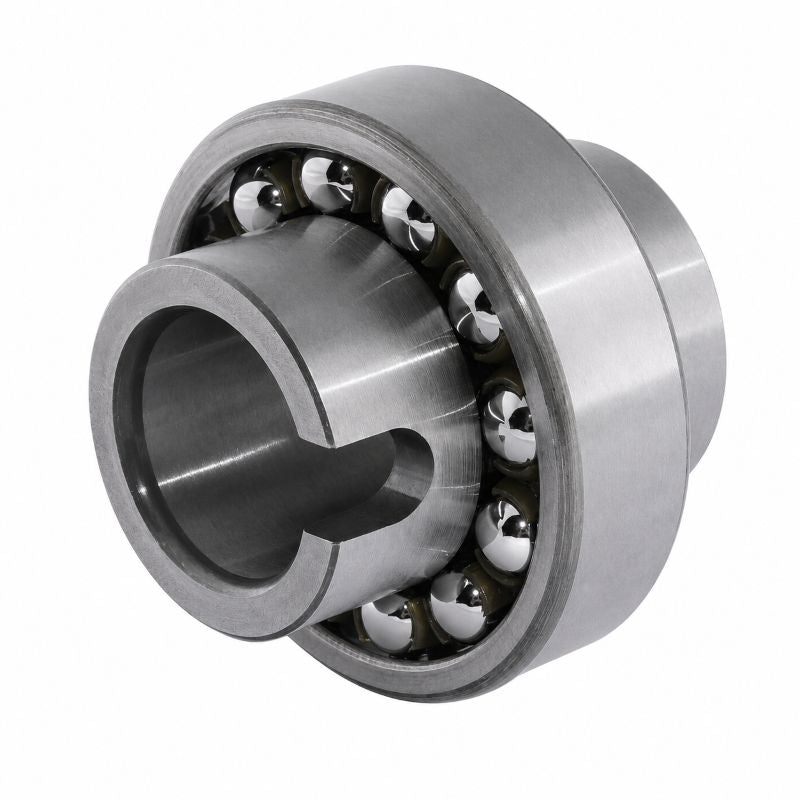

SKF 11206TN9 Open Self Aligning Ball Bearing with Extended Inner Ring 30x62x16mm

SKF 11206TN9 Open Self Aligning Ball Bearing with Extended Inner Ring 30x62x16mm
CHF 75.00 ex VAT
CHF 75.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 59.08
19+ CHF 55.76
29+ CHF 55.10
39+ CHF 54.43
49+ CHF 53.77
74+ CHF 53.11
99+ CHF 49.79
199+ CHF 49.12
249+ CHF 48.46
499+ CHF 47.80
999+ CHF 46.47
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Self Aligning Ball Bearings with Extended Inner Race: This bearing series has two rows of balls running on the same spherical outer raceway, this makes the bearing self aligning, self centering and insensitive to angular misalignment. They are particularly suited to applications where considerable shaft deflections are anticipated. Self aligning ball bearings have the lowest rolling friction of all rolling bearings and are the coolest running bearing type even at high speeds. They have an extended inner race to facilitate location to keyways etc.
Benefits: Tolerates misalignment, cool running, self centering
Brand / Quality:
SKF - High Quality
Inside Diameter:
30mm
Outside Diameter:
62mm
Width:
16mm
Seals / Shields:
None
Clearance:
* Standard
Technical
d 30mm
D 62mm
B 48mm
C 16mm
Dynamic load C 15.6 kN
Static load Co 4.65 kN
Fatigue load limit Pu 0.24 kN
Limiting speed 6700 rpm
Weight 0.35 kg
d2 40.1mm
D1 53.2mm
r1r2 min 1mm
Da max 56.4mm
ra max 1mm
Calculation factor e 0.25
Calculation factor Y0 2.5
Calculation factor Y1 2.5
Calculation factor Y2 3.9
