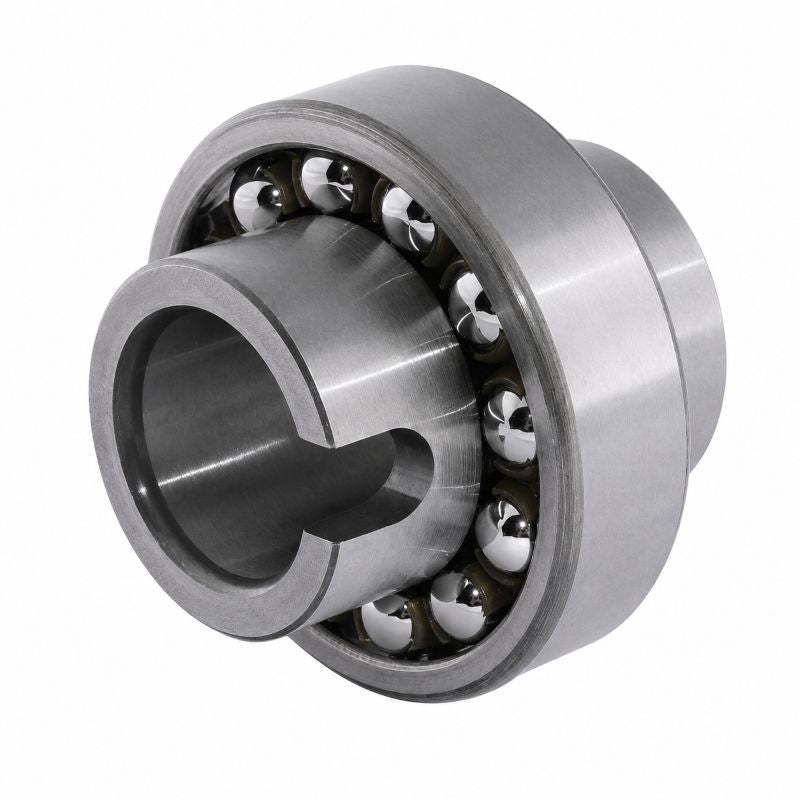

• SKF 11207TN9 Open Self Aligning Ball Bearing with Extended Inner Ring 35x72x17mm
1 1

SKU: 11207TN9-SKF

SKF 11207TN9 Open Self Aligning Ball Bearing with Extended Inner Ring 35x72x17mm

SKF 11207TN9 Open Self Aligning Ball Bearing with Extended Inner Ring 35x72x17mm
CHF 93.00 ex VAT
CHF 93.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 74.08
19+ CHF 69.92
29+ CHF 69.08
39+ CHF 68.25
49+ CHF 67.42
74+ CHF 66.59
99+ CHF 62.42
199+ CHF 61.59
249+ CHF 60.76
499+ CHF 59.93
999+ CHF 58.26
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Self Aligning Ball Bearings with Extended Inner Race: This bearing series has two rows of balls running on the same spherical outer raceway, this makes the bearing self aligning, self centering and insensitive to angular misalignment. They are particularly suited to applications where considerable shaft deflections are anticipated. Self aligning ball bearings have the lowest rolling friction of all rolling bearings and are the coolest running bearing type even at high speeds. They have an extended inner race to facilitate location to keyways etc.
Benefits: Tolerates misalignment, cool running, self centering
Brand / Quality:
SKF - High Quality
Inside Diameter:
35mm
Outside Diameter:
72mm
Width:
17mm
Seals / Shields:
None
Clearance:
* Standard
Technical
d 35mm
D 72mm
B 52mm
C 17mm
Dynamic load C 15.9 kN
Static load Co 5.1 kN
Fatigue load limit Pu 0.27 kN
Limiting speed 5600 rpm
Weight 0.54 kg
d2 47.7mm
D1 60.7mm
r1r2 min 1.1mm
Da max 65mm
ra max 1mm
Calculation factor e 0.23
Calculation factor Y0 2.8
Calculation factor Y1 2.7
Calculation factor Y2 4.2
