SKU: 11208TN9-SKF

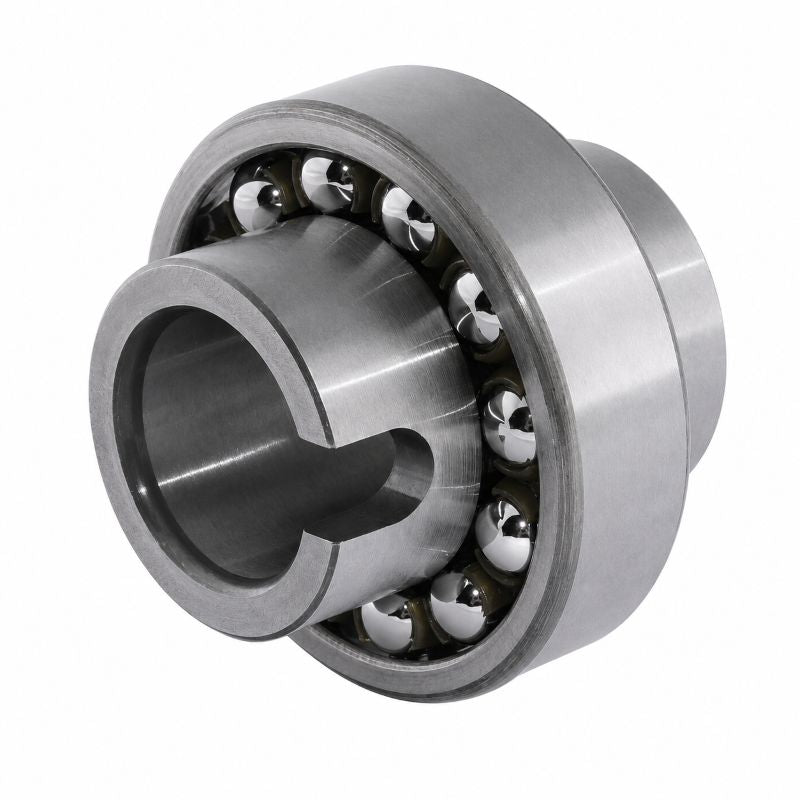

SKF 11208TN9 Open Self Aligning Ball Bearing with Extended Inner Ring 40x80x18mm
SKF 11208TN9 Open Self Aligning Ball Bearing with Extended Inner Ring 40x80x18mm
Regular price
CHF 109.00
ex VAT
Regular price
Sale price
CHF 109.00
ex VAT
In stock
Price Break
10+
CHF 86.38
19+
CHF 81.52
29+
CHF 80.55
39+
CHF 79.58
49+
CHF 78.61
74+
CHF 77.64
99+
CHF 72.79
199+
CHF 71.82
249+
CHF 70.85
499+
CHF 69.88
999+
CHF 67.94
Share this product
Description
Description
|
SKF Self Aligning Ball Bearings with Extended Inner Race: This bearing series has two rows of balls running on the same spherical outer raceway, this makes the bearing self aligning, self centering and insensitive to angular misalignment. They are particularly suited to applications where considerable shaft deflections are anticipated. Self aligning ball bearings have the lowest rolling friction of all rolling bearings and are the coolest running bearing type even at high speeds. They have an extended inner race to facilitate location to keyways etc. Benefits: Tolerates misalignment, cool running, self centering |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 80mm
- Width:
- 18mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 40mm |
|---|---|
| D | 80mm |
| B | 56mm |
| C | 18mm |
| Dynamic load C | 19 kN |
| Static load Co | 6.55 kN |
| Fatigue load limit Pu | 0.34 kN |
| Limiting speed | 5000 rpm |
| Weight | 0.72 kg |
| d2 | 54mm |
| D1 | 68.8mm |
| r1r2 min | 1.1mm |
| Da max | 73mm |
| ra max | 1mm |
| Calculation factor e | 0.22 |
| Calculation factor Y0 | 2.8 |
| Calculation factor Y1 | 2.9 |
| Calculation factor Y2 | 4.5 |
