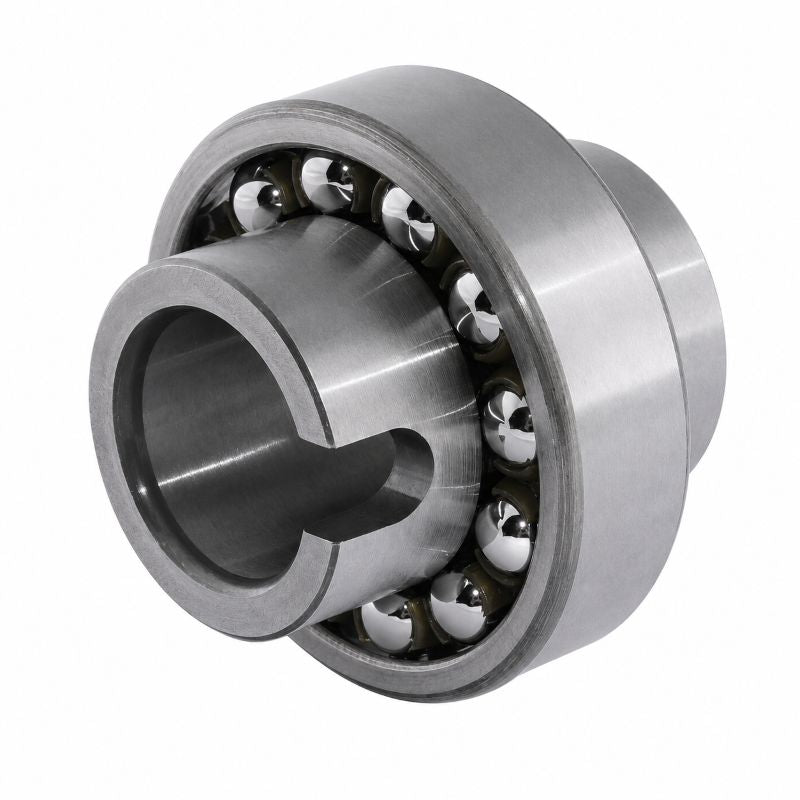

SKF 11212TN9 Open Self Aligning Ball Bearing with Extended Inner Ring 60x110x22mm
SKF 11212TN9 Open Self Aligning Ball Bearing with Extended Inner Ring 60x110x22mm
Regular price
CHF 206.00
ex VAT
Regular price
Sale price
CHF 206.00
ex VAT
In stock
Price Break
10+
CHF 163.51
19+
CHF 154.33
29+
CHF 152.49
39+
CHF 150.65
49+
CHF 148.81
74+
CHF 146.98
99+
CHF 137.79
199+
CHF 135.95
249+
CHF 134.12
499+
CHF 132.28
999+
CHF 128.60
Share this product
Description
Description
|
SKF Self Aligning Ball Bearings with Extended Inner Race: This bearing series has two rows of balls running on the same spherical outer raceway, this makes the bearing self aligning, self centering and insensitive to angular misalignment. They are particularly suited to applications where considerable shaft deflections are anticipated. Self aligning ball bearings have the lowest rolling friction of all rolling bearings and are the coolest running bearing type even at high speeds. They have an extended inner race to facilitate location to keyways etc. Benefits: Tolerates misalignment, cool running, self centering |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 110mm
- Width:
- 22mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 60mm |
|---|---|
| D | 110mm |
| B | 62mm |
| C | 22mm |
| Dynamic load C | 30.2 kN |
| Static load Co | 11.6 kN |
| Fatigue load limit Pu | 0.6 kN |
| Limiting speed | 3400 rpm |
| Weight | 1.15 kg |
| d2 | 78mm |
| D1 | 97.5mm |
| r1r2 min | 1.5mm |
| Da max | 101mm |
| ra max | 1.5mm |
| Calculation factor e | 0.19 |
| Calculation factor Y0 | 3.6 |
| Calculation factor Y1 | 3.3 |
| Calculation factor Y2 | 5.1 |
