SKU: 1135-1.3/8DEC-RHP

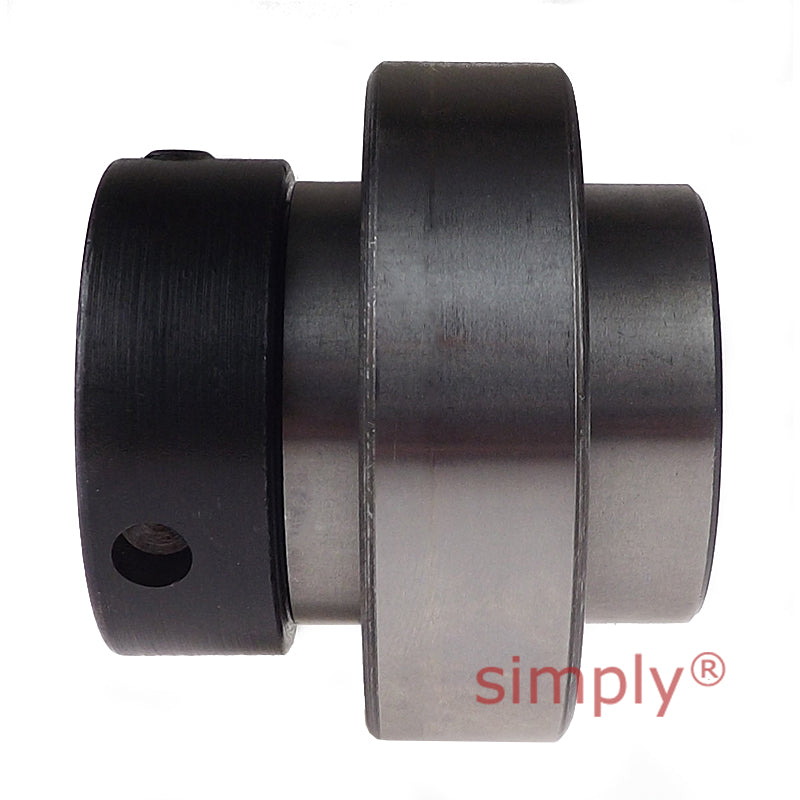

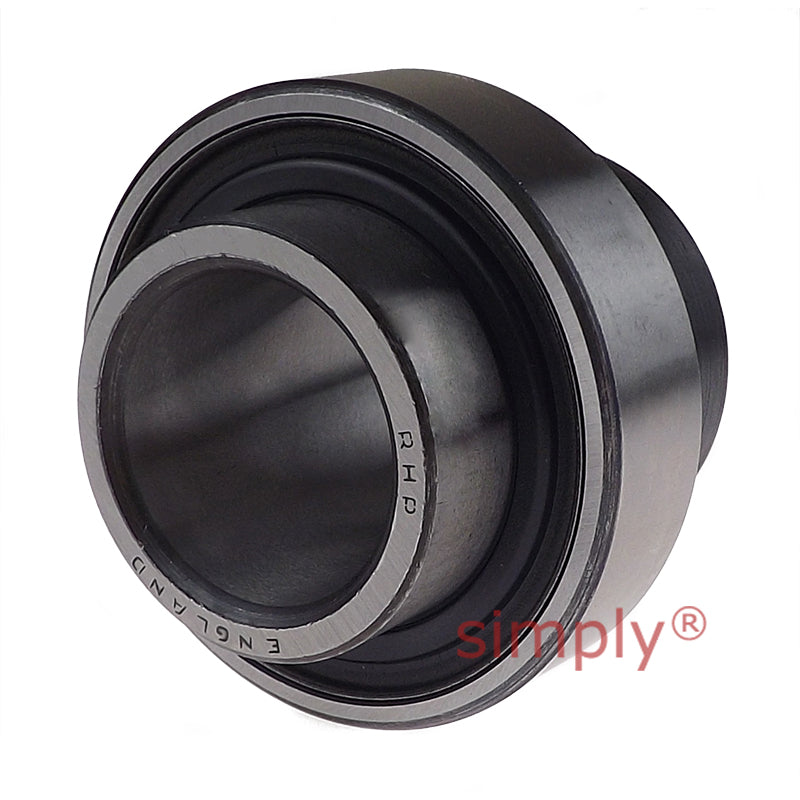

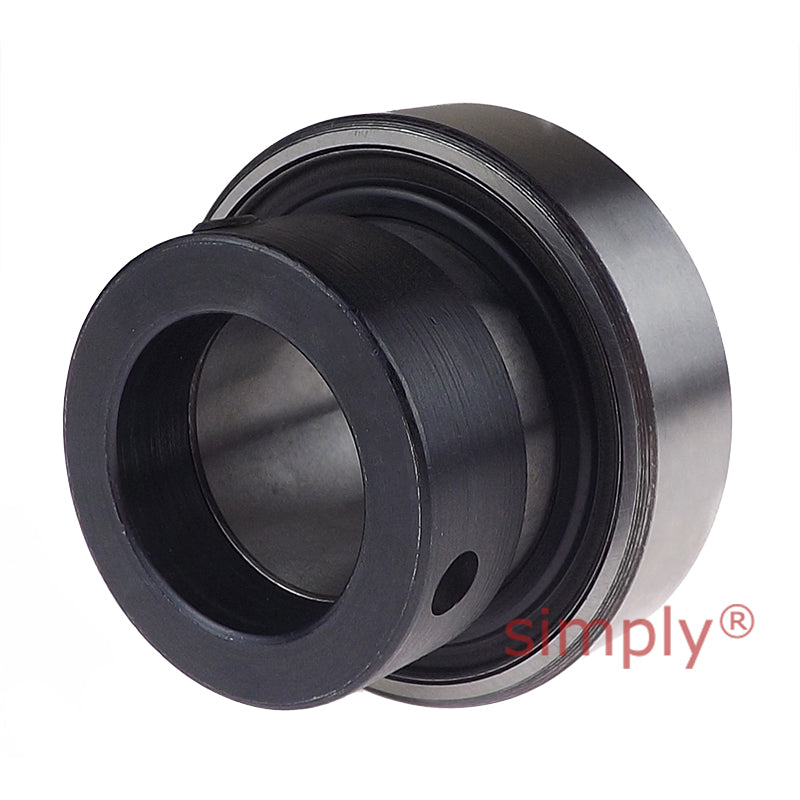

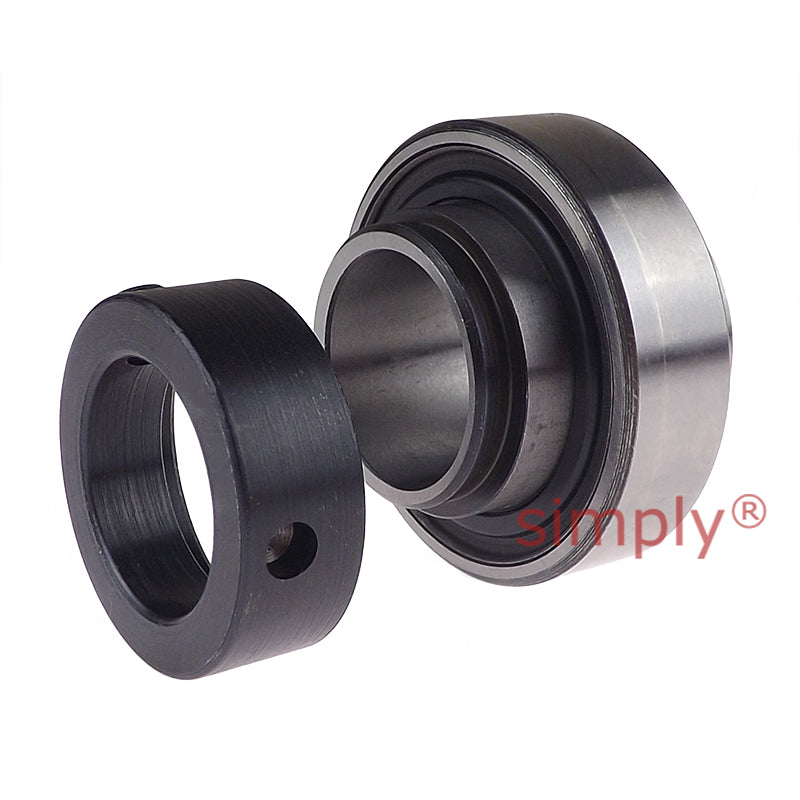

RHP 1135-1-3/8DEC Parallel Outer Full Width Bearing Insert 1-3/8 inch Bore 72mm Outside Diameter
RHP 1135-1-3/8DEC Parallel Outer Full Width Bearing Insert 1-3/8 inch Bore 72mm Outside Diameter
Regular price
CHF 51.00
ex VAT
Regular price
Sale price
CHF 51.00
ex VAT
In stock
Price Break
10+
CHF 40.51
20+
CHF 38.23
30+
CHF 37.78
40+
CHF 37.32
50+
CHF 36.87
75+
CHF 36.41
100+
CHF 34.14
200+
CHF 33.68
250+
CHF 33.23
500+
CHF 32.77
1000+
CHF 31.86
Share this product
Description
Description
|
RHP 1000-DEC Series: Full width bearing insert with parallel outer race and eccentric collar and grub screw to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required Benefits: Cost effective replacement insert, eccentric collar fixing |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 34.93mm = 1.375 (1-3/8) inch
- Outside Diameter:
- 72mm
- Style:
- 1135
Technical
Technical
| Bore | 1-3/8 inch |
|---|---|
| D | 2.8346 inch |
| C | 0.669 inch |
| B3 | 2.015 inch |
| s2 | 0.744 inch |
| d2 | 2.188 inch |
| r | 0.039 inch |
| Dynamic load Cr | 25700 N |
| Static load Cor | 15300 N |
| Rec max speed | 4500 rpm |
| Weight | 0.7 kg |
