SKU: 120-1-SYN-NO4-RENOLD

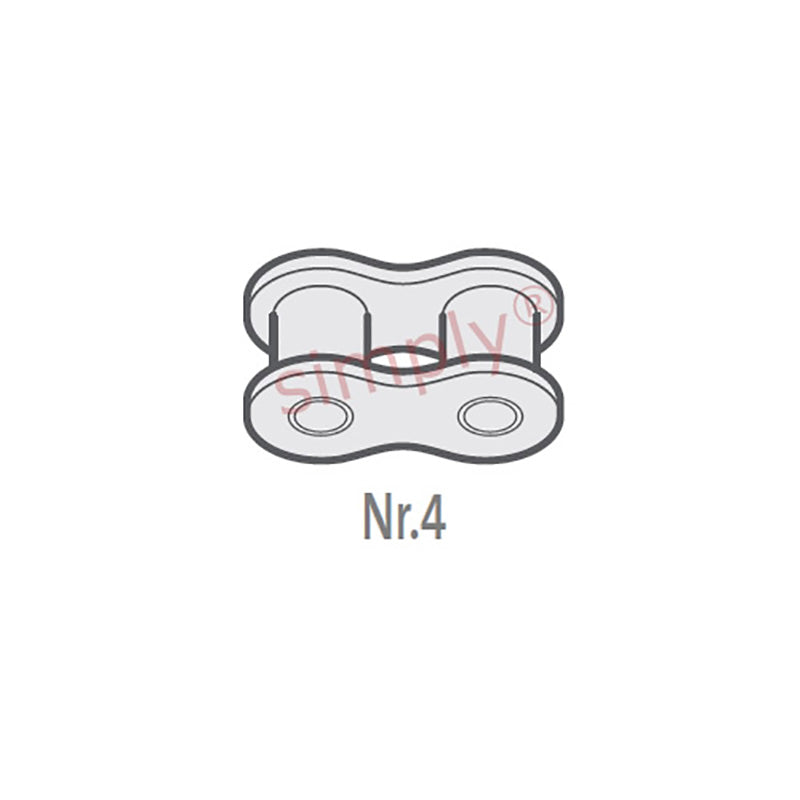

Renold Synergy 120-1-NO4 ANSI / AS Simplex Chain Inner Link 1-1/2 inch Pitch
Renold Synergy 120-1-NO4 ANSI / AS Simplex Chain Inner Link 1-1/2 inch Pitch
Regular price
CHF 123.78
ex VAT
Regular price
Sale price
CHF 123.78
ex VAT
In stock
Price Break
10+
CHF 110.16
19+
CHF 103.98
29+
CHF 102.74
39+
CHF 101.50
49+
CHF 100.26
74+
CHF 99.02
99+
CHF 92.84
199+
CHF 91.60
249+
CHF 90.36
499+
CHF 89.12
999+
CHF 86.65
Couldn't load pickup availability
Description
Description
| Renold No. 4 ANSI Simplex Connecting Link: These are complete assemblies for use with all sizes and types of chain. The unit consists of two inner plates pressed on to the bushes which carry the rollers. (Inner links for use with bush chains have no rollers). |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 38.1mm = 1.5 (1-1/2) inch
Technical
Technical
| Pitch (A) | 1.5 inch |
|---|---|
| Pitch (A) | 38.1mm |
| Inside Width min (B) | 25.23mm |
| Roller Diameter max (C) | 22.23mm |
| Plate Height max (D) | 36.2mm |
| Plate Width Inner max (E) | 4.8mm |
| Plate Width Outer max (F) | 4.8mm |
| Pin Diameter max (G) | 11.11mm |
| Pin Length max (H1) | 49.3mm |
| Connecting Link Extension max (J) | 5.3mm |
| ISO606 Tensile Strength min | 125000 N |
| Weight | 0.07kg/m |
