SKU: 120-3-BB-NO58-RENOLD

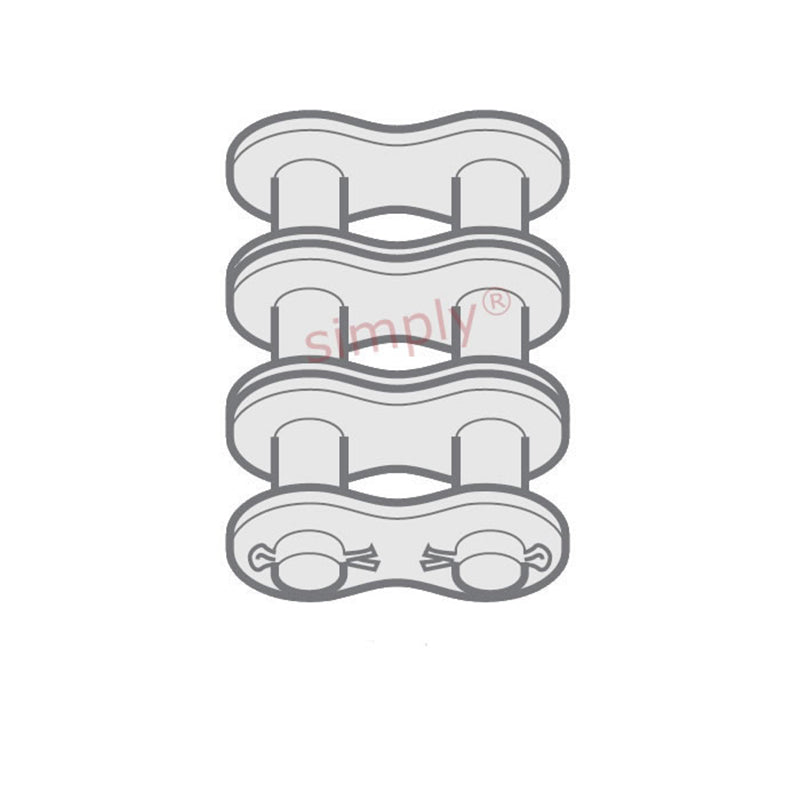

Renold Blue Box 120-3-NO58 ANSI / AS Triplex Chain Cottered Connecting Link 1-1/2 inch Pitch
Renold Blue Box 120-3-NO58 ANSI / AS Triplex Chain Cottered Connecting Link 1-1/2 inch Pitch
Regular price
CHF 157.00
ex VAT
Regular price
Sale price
CHF 157.00
ex VAT
In stock
Price Break
2+
CHF 124.28
5+
CHF 117.30
10+
CHF 115.90
29+
CHF 114.50
49+
CHF 113.11
75+
CHF 111.71
100+
CHF 104.73
200+
CHF 103.33
250+
CHF 101.94
500+
CHF 100.54
1000+
CHF 97.75
Description
Description
| Renold No. 58 ANSI Triplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 38.1mm = 1.5 (1-1/2) inch
Technical
Technical
| Pitch (A) | 1.5 inch |
|---|---|
| Pitch (A) | 38.1mm |
| Inside Width min (B) | 25.23mm |
| Roller Diameter max (C) | 22.23mm |
| Plate Height max (D) | 36.2mm |
| Plate Width Inner max (E) | 4.8mm |
| Plate Width Outer max (F) | 4.8mm |
| Pin Diameter max (G) | 11.11mm |
| Pin Length max (H2) | 140.2mm |
| Connecting Link Extension max (J) | 5.3mm |
| Transverse Pitch nom (K) | 45.44mm |
| ISO606 Tensile Strength min | 375000 N |
| Weight | 0.229kg/m |
