SKU: 120-3-SYN-NO107-RENOLD
Renold Synergy 120-3-NO107 ANSI / AS Triplex Chain Outer Link To Be Riveted 1-1/2 inch Pitch
Renold Synergy 120-3-NO107 ANSI / AS Triplex Chain Outer Link To Be Riveted 1-1/2 inch Pitch
Regular price
CHF 610.00
ex VAT
Regular price
Sale price
CHF 610.00
ex VAT
In stock
Price Break
2+
CHF 485.81
5+
CHF 458.52
10+
CHF 453.06
29+
CHF 447.60
49+
CHF 442.14
75+
CHF 436.68
100+
CHF 409.39
200+
CHF 403.93
250+
CHF 398.47
500+
CHF 393.01
1000+
CHF 382.10
Description
Description

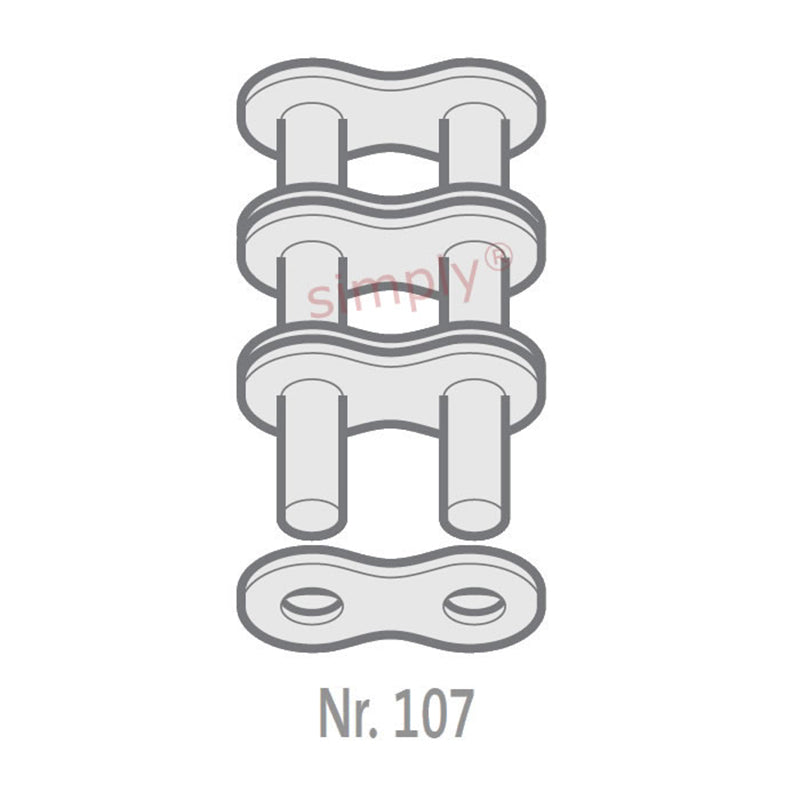

| Renold No. 107 ANSI Triplex Connecting Link: For use with all sizes and types of chain where optimum security is desired. The link is supplied with bearing pins riveted into one outer plate. The other outer plate is an interference fit on the bearing pins, the ends of which should be riveted over after the plate is fitted. Press fit connecting links should only be used once; new links must be used to replace dismantled links. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 38.1mm = 1.5 (1-1/2) inch
Technical
Technical
| Pitch (A) | 1.5 inch |
|---|---|
| Pitch (A) | 38.1mm |
| Inside Width min (B) | 25.23mm |
| Roller Diameter max (C) | 22.23mm |
| Plate Height max (D) | 36.2mm |
| Plate Width Inner max (E) | 4.8mm |
| Plate Width Outer max (F) | 4.8mm |
| Pin Diameter max (G) | 11.11mm |
| Pin Length max (H2) | 140.2mm |
| Connecting Link Extension max (J) | 5.3mm |
| Transverse Pitch nom (K) | 45.44mm |
| ISO606 Tensile Strength min | 375000 N |
| Weight | 0.15kg/m |
