SKU: 120-3-SYNERGY-10FT-RENOLD

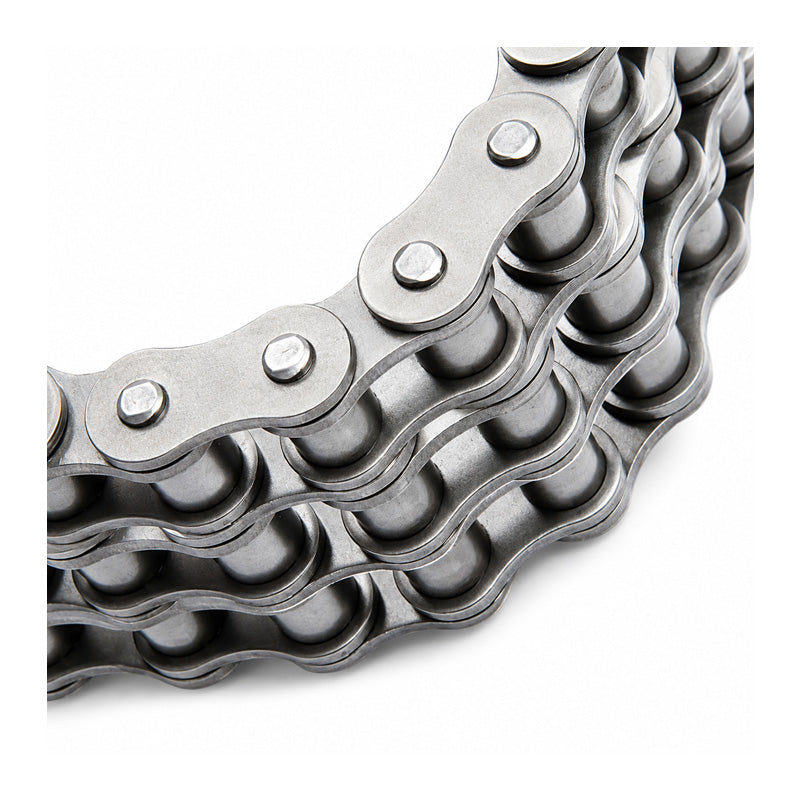

Renold Synergy 120-3 ANSI / AS Triplex Roller Chain 1-1/2 inch Pitch - 10 Feet Length
Renold Synergy 120-3 ANSI / AS Triplex Roller Chain 1-1/2 inch Pitch - 10 Feet Length
Regular price
CHF 4,752.23
ex VAT
Regular price
Sale price
CHF 4,752.23
ex VAT
Equivalent to: GY120A3
In stock
Price Break
10+
CHF 4,229.48
19+
CHF 3,991.87
29+
CHF 3,944.35
39+
CHF 3,896.83
49+
CHF 3,849.31
74+
CHF 3,801.78
99+
CHF 3,564.17
199+
CHF 3,516.65
249+
CHF 3,469.13
499+
CHF 3,421.61
999+
CHF 3,326.56
Couldn't load pickup availability
Description
Description
Renold Synergy High Performance Chain: Renold Synergy chain will last three times longer in normal working conditions than your current non-Renold chain or your next chain is free. It's that simple. If the working life of your non Renold Chain is unsatisfactory, try Renold Synergy®. You will see productivity increase, downtime cut and costs saved. Renold are so confident that their chain will significantly outlast any other non-Renold brand chain that we will give you a replacement chain free*. There has never been a better time to specify Renold Synergy® - the only high performance transmission chain.
Equivalent: GY120A3
* Subject to site visit from a Renold Service Engineer
Renold Synergy® has transformed the productivity and efficiency of all these industrial applications and more.
Equivalent: GY120A3
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 38.1mm = 1.5 (1-1/2) inch
Technical
Technical
| Pitch (A) | 1.5 inch |
|---|---|
| Pitch (A) | 38.1mm |
| Inside Width min (B) | 25.23mm |
| Roller Diameter max (C) | 22.23mm |
| Plate Height max (D) | 36.2mm |
| Plate Width Inner max (E) | 4.8mm |
| Plate Width Outer max (F) | 4.8mm |
| Pin Diameter max (G) | 11.11mm |
| Pin Length max (H1) | 140.2mm |
| Connecting Link Extension max (J) | 5.3mm |
| ISO606 Tensile Strength min | 375000 N |
| Weight | 16.7kg/m |
