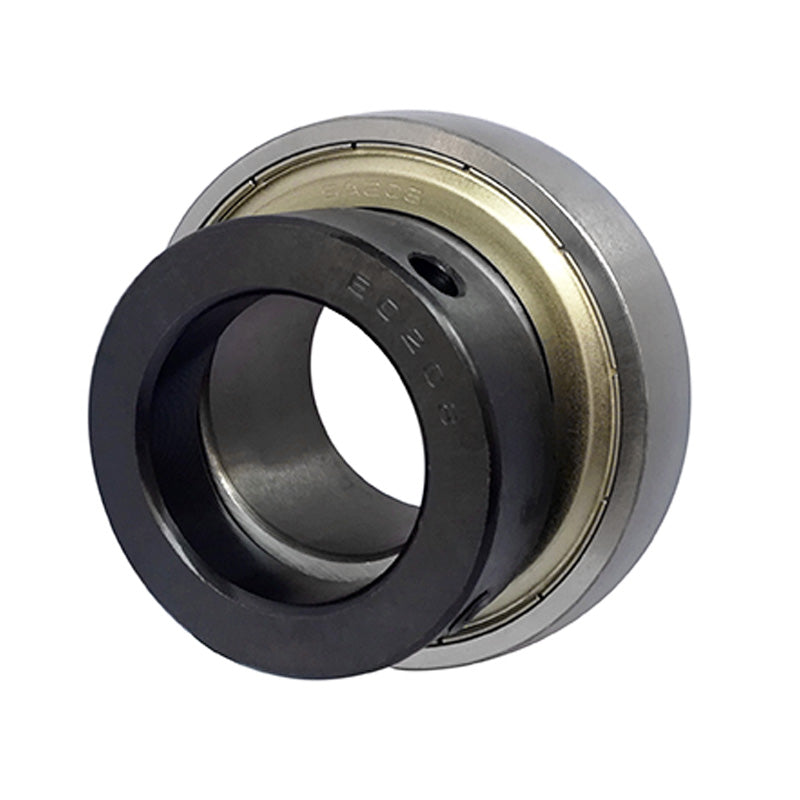

RHP 1217-15EC Spherical Outside Flat Back Collar Bearing Insert 15mm Bore 40mm Outside Diameter
RHP 1217-15EC Spherical Outside Flat Back Collar Bearing Insert 15mm Bore 40mm Outside Diameter
Regular price
CHF 24.00
ex VAT
Regular price
Sale price
CHF 24.00
ex VAT
In stock
Price Break
10+
CHF 18.76
20+
CHF 17.70
30+
CHF 17.49
40+
CHF 17.28
50+
CHF 17.07
75+
CHF 16.86
100+
CHF 15.81
200+
CHF 15.60
250+
CHF 15.39
500+
CHF 15.18
1000+
CHF 14.75
Description
Description
|
RHP 1200 EC Series: Flat back bearing insert with spherical outer race and eccentric collar and grub screw to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required Benefits: Cost effective replacement insert, eccentric collar fixing, sealed for life |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 40mm
- Style:
- 1217
Technical
Technical
| Bore | 15mm |
|---|---|
| D | 40mm |
| C | 12mm |
| B2 | 28.54mm |
| s1 | 6.55mm |
| d2 | 28.58mm |
| r | 0.6mm |
| Dynamic load Cr | 9550 N |
| Static load Cor | 4800 N |
| Rec max speed | 7000 rpm |
| Weight | 0.15 kg |
