SKU: 1280/1220-TIM

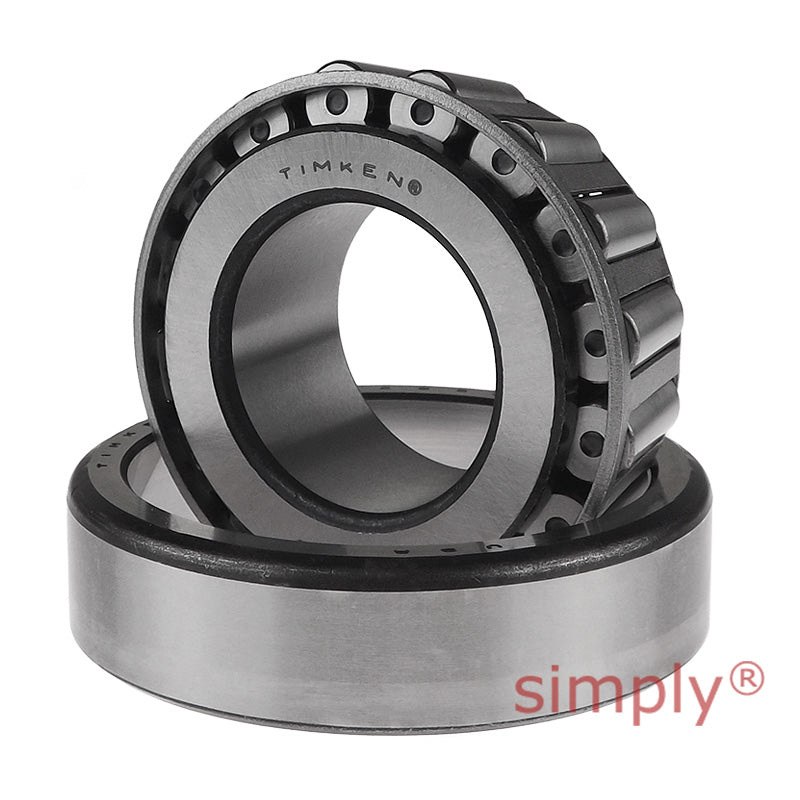

Timken 1280/1220 TS Single-Row Taper Roller Bearing 0.875x2.25x0.875 inch
Timken 1280/1220 TS Single-Row Taper Roller Bearing 0.875x2.25x0.875 inch
Regular price
CHF 75.03
ex VAT
Regular price
Sale price
CHF 75.03
ex VAT
In stock
Price Break
10+
CHF 66.78
19+
CHF 63.03
29+
CHF 62.27
39+
CHF 61.52
49+
CHF 60.77
74+
CHF 60.02
99+
CHF 56.27
199+
CHF 55.52
249+
CHF 54.77
499+
CHF 54.02
999+
CHF 52.52
Couldn't load pickup availability
Description
Description
Timken Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 22.23mm = 0.875 (7/8) inch
- Outside Diameter:
- 57.15mm = 2.25 (2-1/4) inch
- Width:
- 22.23mm = 0.875 (7/8) inch
Technical
Technical
| d | 22.225mm = 0.875 inch |
|---|---|
| D | 57.15mm = 2.25 inch |
| T | 22.225mm = 0.875 inch |
| Dynamic (1) C1 | 51200N |
| Factors (5) e | 0.35 |
| Factors (5) Y | 1.73 |
| Dynamic (2) C90 | 13300N |
| Dynamic (2) Ca90 | 7880N |
| Factors (5) K | 1.69 |
| Static C0 | 55100N |
| Bearing B | 22.225mm = 0.875 inch |
| Bearing C | 17.462mm = 0.6875 inch |
| Bearing a(3) | -6.9mm = -0.27 inch |
| Shaft max shaft fillet radius R(4) | 0.8mm = 0.03 inch |
| Shaft backing shoulder diameter da | 29mm = 1.14 inch |
| Shaft backing shoulder diameter db | 29.5mm = 1.16 inch |
| Housing backing shoulder diameter r(4) | 1.5mm = 0.06 inch |
| Housing backing shoulder diameter Da | 52mm = 2.05 inch |
| Housing backing shoulder diameter Db | 49mm = 1.93 inch |
| G1 | 11.4 |
| G2 | 5.52 |
| Cg | 0.0556 |
