SKU: 12B-2-SNX-NO26-RENOLD
Renold SYNO 12B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 3/4 inch Pitch
Renold SYNO 12B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 3/4 inch Pitch
Regular price
CHF 31.00
ex VAT
Regular price
Sale price
CHF 31.00
ex VAT
In stock
Price Break
2+
CHF 24.68
5+
CHF 23.29
10+
CHF 23.02
29+
CHF 22.74
49+
CHF 22.46
75+
CHF 22.18
100+
CHF 20.80
200+
CHF 20.52
250+
CHF 20.24
500+
CHF 19.97
1000+
CHF 19.41
Description
Description

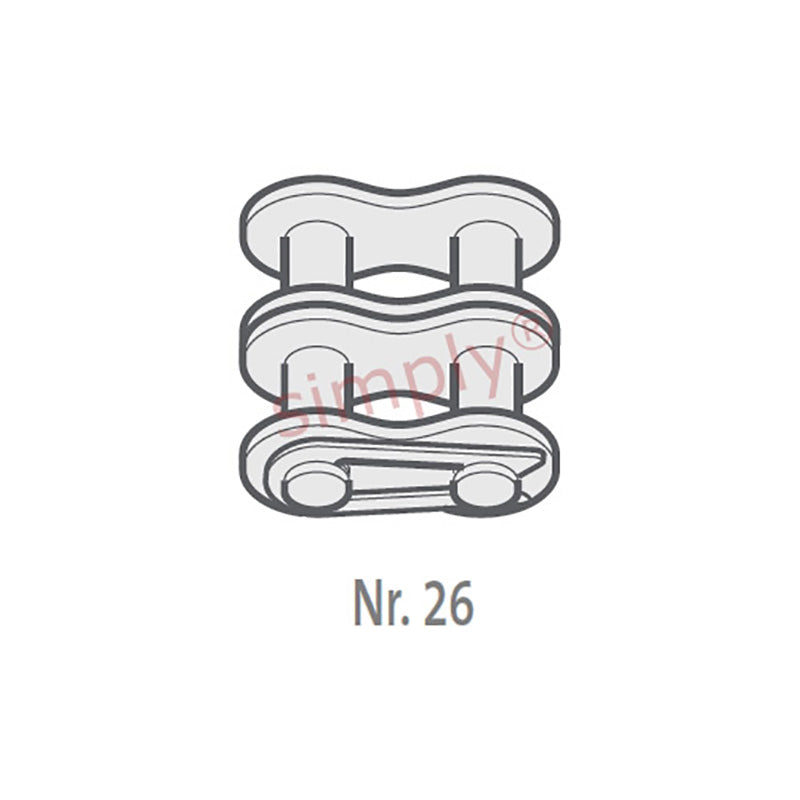

| Renold No. 26 European (BS) Duplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 19.05mm = 0.75 (3/4) inch
Technical
Technical
| Pitch (A) | 0.75 inch |
|---|---|
| Pitch (A) | 19.05mm |
| Inside Width min (B) | 11.68mm |
| Roller Diameter max (C) | 12.07mm |
| Plate Height max (D) | 16mm |
| Plate Width Inner max (E) | 1.81mm |
| Plate Width Outer max (F) | 1.81mm |
| Pin Diameter max (G) | 5.72mm |
| Pin Length max (H2) | 41.4mm |
| Connecting Link Extension max (J) | 2.6mm |
| Transverse Pitch nom (K) | mm |
| ISO606 Tensile Strength min | 57800 N |
| Weight | 0.015kg/m |
