SKU: 12B-3-SYN-NO30-RENOLD
Renold Synergy 12B-3-NO30 BS Triplex Chain Double Cranked Link 3/4 inch Pitch
Renold Synergy 12B-3-NO30 BS Triplex Chain Double Cranked Link 3/4 inch Pitch
Regular price
CHF 67.00
ex VAT
Regular price
Sale price
CHF 67.00
ex VAT
In stock
Price Break
2+
CHF 53.03
5+
CHF 50.05
10+
CHF 49.46
29+
CHF 48.86
49+
CHF 48.27
75+
CHF 47.67
100+
CHF 44.69
200+
CHF 44.09
250+
CHF 43.50
500+
CHF 42.90
1000+
CHF 41.71
Description
Description

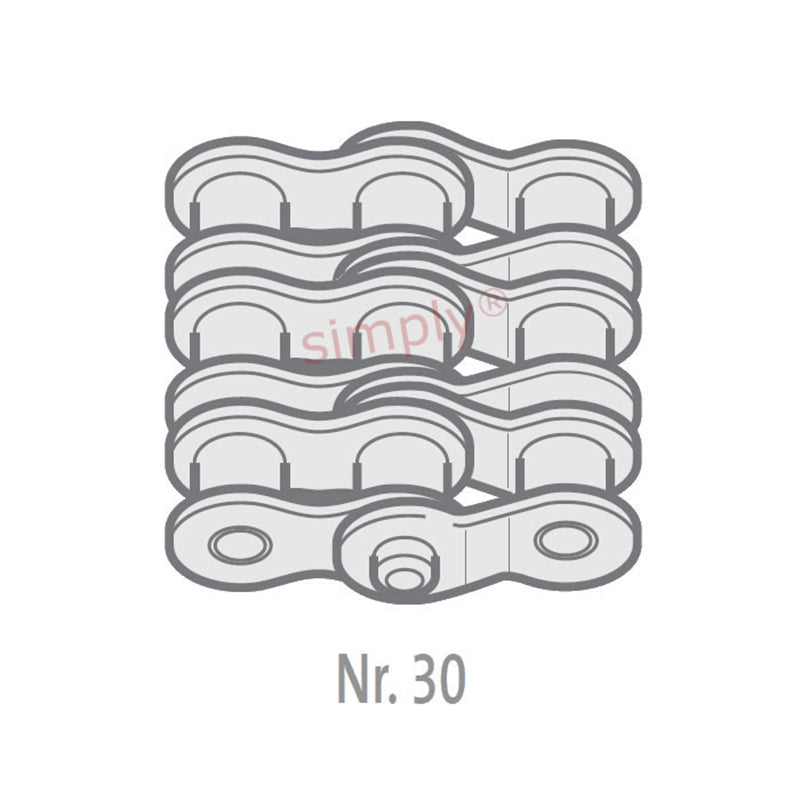

| Renold No. 30 European (BS) Triplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 19.05mm = 0.75 (3/4) inch
Technical
Technical
| Pitch (A) | 0.75 inch |
|---|---|
| Pitch (A) | 19.05mm |
| Inside Width min (B) | 11.68mm |
| Roller Diameter max (C) | 12.07mm |
| Plate Height max (D) | 16mm |
| Plate Width Inner max (E) | 1.81mm |
| Plate Width Outer max (F) | 1.81mm |
| Pin Diameter max (G) | 5.72mm |
| Pin Length max (H2) | 60.9mm |
| Connecting Link Extension max (J) | 2.6mm |
| Transverse Pitch nom (K) | 19.46mm |
| ISO606 Tensile Strength min | 86700 N |
| Weight | 0.015kg/m |
