SKU: 1320-3/4EC-RHP

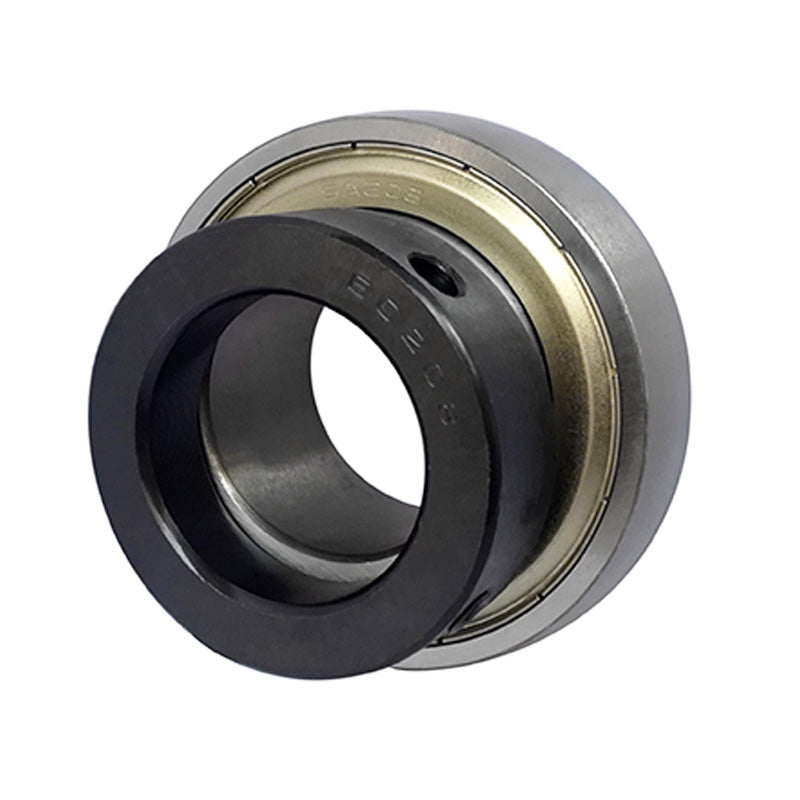

RHP 1320-3/4EC Parallel Outside Flat Back Collar Bearing Insert 3/4 inch Bore 47mm Outside Diameter
RHP 1320-3/4EC Parallel Outside Flat Back Collar Bearing Insert 3/4 inch Bore 47mm Outside Diameter
Regular price
CHF 25.09
ex VAT
Regular price
Sale price
CHF 25.09
ex VAT
In stock
Price Break
10+
CHF 22.33
19+
CHF 21.08
29+
CHF 20.82
39+
CHF 20.57
49+
CHF 20.32
74+
CHF 20.07
99+
CHF 18.82
199+
CHF 18.57
249+
CHF 18.32
499+
CHF 18.06
999+
CHF 17.56
Couldn't load pickup availability
Description
Description
|
RHP 1300 EC Series: Flat back bearing insert with parallel outer race and eccentric collar and grub screw to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required Benefits: Cost effective replacement insert, eccentric collar fixing, sealed for life |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Outside Diameter:
- 47mm
- Style:
- 1320
- Type:
- Spherical Outer
Technical
Technical
| Bore | 3/4 inch |
|---|---|
| D | 1.8504 inch |
| C | 0.551 inch |
| B2 | 1.217 inch |
| s1 | 0.298 inch |
| d2 | 1.311 inch |
| r | 0.039 inch |
| Dynamic load Cr | 12800 N |
| Static load Cor | 6650 N |
| Rec max speed | 6700 rpm |
| Weight | 0.16 kg |
