SKU: 1325-25-RHP

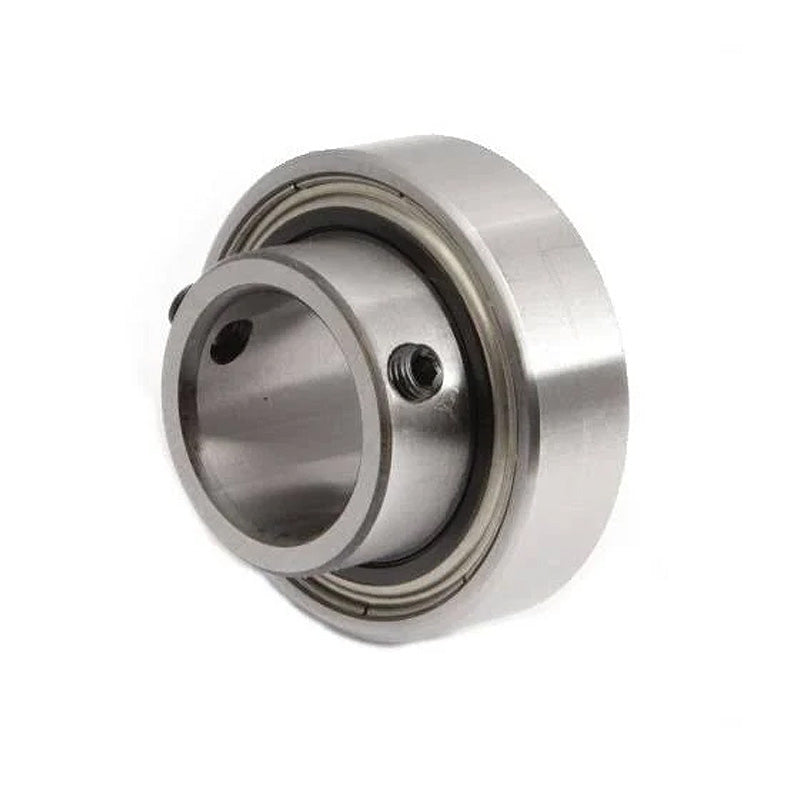

RHP 1325-25 Parallel Outer Flat Back Bearing Insert 25mm Bore 52mm Outside Diameter

Name: RHP 1325-25 Parallel Outer Flat Back Bearing Insert 25mm Bore 52mm Outside Diameter
Brand: RHP
SKU: 1325-25-RHP
Price: 27.00 CHF
Availability: InStock

CHF 27.00 ex VAT

Sale Sold out

In stock

Price Break

10+ CHF 20.87

20+ CHF 19.69

30+ CHF 19.46

40+ CHF 19.22

50+ CHF 18.99

75+ CHF 18.76

100+ CHF 17.58

200+ CHF 17.35

250+ CHF 17.11

500+ CHF 16.88

1000+ CHF 16.41

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

RHP 1300 Series: Flat back bearing insert with parallel outer race and 2 grub screws 120 degrees apart to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required
Benefits: Cost effective replacement insert, grub screw fixing

Brand / Quality:: RHP - High Quality
Inside Diameter:: 25mm
Outside Diameter:: 52mm
Style:: 1325

Technical

Bore	25mm
D	52mm
C	15mm
B1	27.35mm
s1	7.56mm
d1	34.01mm
M	5.35mm
r	1mm
Dynamic load Cr	14000 N
Static load Cor	7880 N
Rec max speed	6250 rpm
Weight	0.13 kg
