SKU: 1330-1.3/16EC-RHP

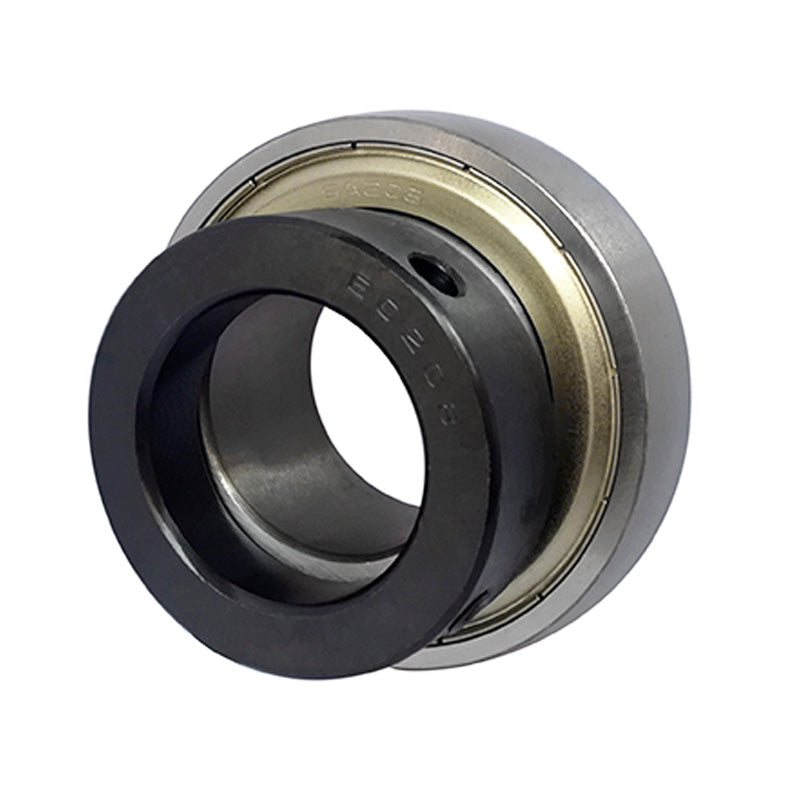

RHP 1330-1-3/16EC Parallel Outer Flat Back Collar Bearing Insert 1-3/16 inch Bore 62mm Outside Diameter
RHP 1330-1-3/16EC Parallel Outer Flat Back Collar Bearing Insert 1-3/16 inch Bore 62mm Outside Diameter
Regular price
CHF 34.00
ex VAT
Regular price
Sale price
CHF 34.00
ex VAT
In stock
Price Break
10+
CHF 27.09
20+
CHF 25.56
30+
CHF 25.26
40+
CHF 24.96
50+
CHF 24.65
75+
CHF 24.35
100+
CHF 22.83
200+
CHF 22.52
250+
CHF 22.22
500+
CHF 21.91
1000+
CHF 21.30
Description
Description
|
RHP 1300 EC Series: Flat back bearing insert with parallel outer race and eccentric collar and grub screw to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required Benefits: Cost effective replacement insert, eccentric collar fixing, sealed for life |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 30.16mm = 1.187 (1-3/16) inch
- Outside Diameter:
- 62mm
- Style:
- 1330
Technical
Technical
| Bore | 1-3/16 inch |
|---|---|
| D | 2.4409 inch |
| C | 0.63 inch |
| B2 | 1.405 inch |
| s1 | 0.356 inch |
| d2 | 1.75 inch |
| r | 0.039 inch |
| Dynamic load Cr | 19500 N |
| Static load Cor | 11300 N |
| Rec max speed | 5300 rpm |
| Weight | 0.4 kg |
