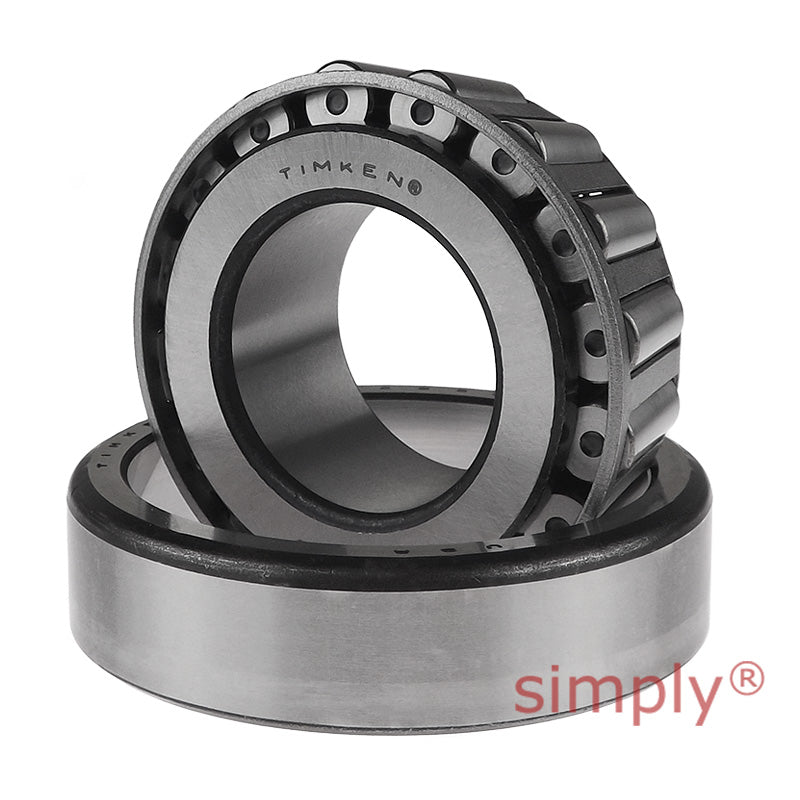

Timken 13685/13624 TS Single-Row Taper Roller Bearing 1.5x2.7547x0.866 inch
Timken 13685/13624 TS Single-Row Taper Roller Bearing 1.5x2.7547x0.866 inch
Regular price
CHF 163.22
ex VAT
Regular price
Sale price
CHF 163.22
ex VAT
In stock
Price Break
10+
CHF 145.27
19+
CHF 137.10
29+
CHF 135.47
39+
CHF 133.84
49+
CHF 132.21
74+
CHF 130.58
99+
CHF 122.42
199+
CHF 120.78
249+
CHF 119.15
499+
CHF 117.52
999+
CHF 114.25
Couldn't load pickup availability
Description
Description
Timken Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Outside Diameter:
- 69.97mm = 2.755 inch
- Width:
- 22mm = 0.866 inch
Technical
Technical
| d | 38.1mm = 1.5 inch |
|---|---|
| D | 69.969mm = 2.7547 inch |
| T | 21.996mm = 0.866 inch |
| Dynamic (1) C1 | 52500N |
| Factors (5) e | 0.4 |
| Factors (5) Y | 1.49 |
| Dynamic (2) C90 | 13600N |
| Dynamic (2) Ca90 | 9370N |
| Factors (5) K | 1.45 |
| Static C0 | 67900N |
| Bearing B | 19.05mm = 0.75 inch |
| Bearing C | 18.029mm = 0.7098 inch |
| Bearing a(3) | -3mm = -0.12 inch |
| Shaft max shaft fillet radius R(4) | 3.5mm = 0.14 inch |
| Shaft backing shoulder diameter da | 43mm = 1.69 inch |
| Shaft backing shoulder diameter db | 49.5mm = 1.95 inch |
| Housing backing shoulder diameter r(4) | 1.5mm = 0.06 inch |
| Housing backing shoulder diameter Da | 65mm = 2.56 inch |
| Housing backing shoulder diameter Db | 61mm = 2.4 inch |
| Cage Aa | 0.9mm = 0.04 inch |
| Cage Ab | 0.6mm = 0.02 inch |
| G1 | 20.7 |
| G2 | 10.9 |
| Cg | 0.0713 |
