SKU: 140-2-SYN-NO107-RENOLD
Renold Synergy 140-2-NO107 ANSI / AS Duplex Chain Outer Link To Be Riveted 1-3/4 inch Pitch
Renold Synergy 140-2-NO107 ANSI / AS Duplex Chain Outer Link To Be Riveted 1-3/4 inch Pitch
Regular price
CHF 372.00
ex VAT
Regular price
Sale price
CHF 372.00
ex VAT
In stock
Price Break
2+
CHF 295.88
5+
CHF 279.26
10+
CHF 275.94
29+
CHF 272.61
49+
CHF 269.29
75+
CHF 265.96
100+
CHF 249.34
200+
CHF 246.01
250+
CHF 242.69
500+
CHF 239.37
1000+
CHF 232.72
Description
Description

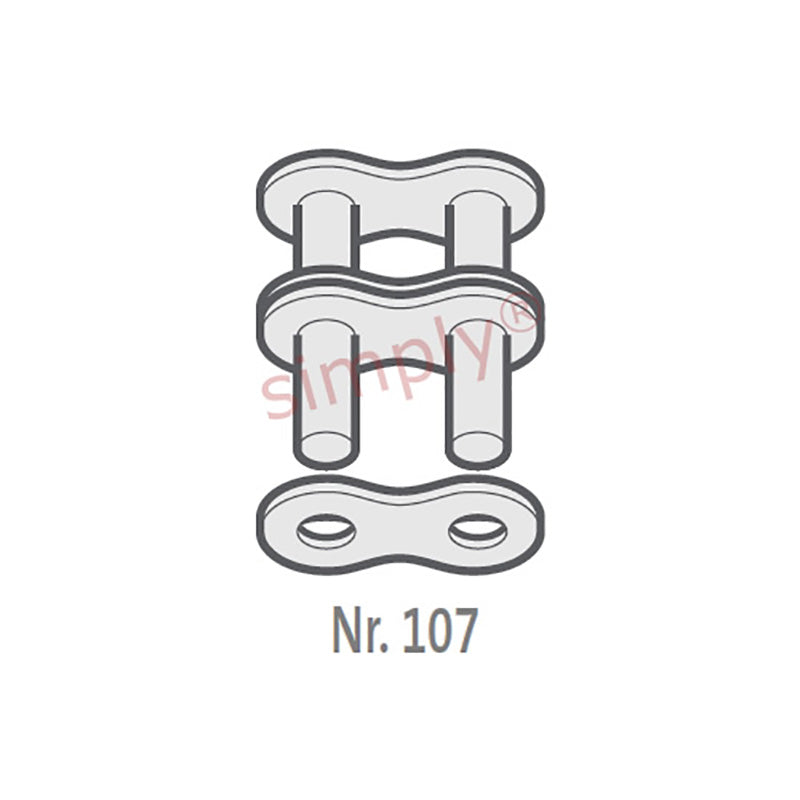

| Renold No. 107 ANSI Duplex Connecting Link: For use with all sizes and types of chain where optimum security is desired. The link is supplied with bearing pins riveted into one outer plate. The other outer plate is an interference fit on the bearing pins, the ends of which should be riveted over after the plate is fitted. Press fit connecting links should only be used once; new links must be used to replace dismantled links. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 44.45mm = 1.75 (1-3/4) inch
Technical
Technical
| Pitch (A) | 1.75 inch |
|---|---|
| Pitch (A) | 44.45mm |
| Inside Width min (B) | 25.23mm |
| Roller Diameter max (C) | 25.4mm |
| Plate Height max (D) | 42.23mm |
| Plate Width Inner max (E) | 5.61mm |
| Plate Width Outer max (F) | 5.61mm |
| Pin Diameter max (G) | 12.71mm |
| Pin Length max (H2) | 101.8mm |
| Connecting Link Extension max (J) | 5.2mm |
| Transverse Pitch nom (K) | 48.87mm |
| ISO606 Tensile Strength min | 340000 N |
| Weight | 0.77kg/m |
