SKU: 140-3-BB-NO107-RENOLD
Renold Blue Box 140-3-NO107 ANSI / AS Triplex Chain Outer Link To Be Riveted 1-3/4 inch Pitch
Renold Blue Box 140-3-NO107 ANSI / AS Triplex Chain Outer Link To Be Riveted 1-3/4 inch Pitch
Regular price
CHF 221.00
ex VAT
Regular price
Sale price
CHF 221.00
ex VAT
In stock
Price Break
2+
CHF 175.81
5+
CHF 165.93
10+
CHF 163.95
29+
CHF 161.98
49+
CHF 160.00
75+
CHF 158.03
100+
CHF 148.15
200+
CHF 146.18
250+
CHF 144.20
500+
CHF 142.23
1000+
CHF 138.27
Description
Description

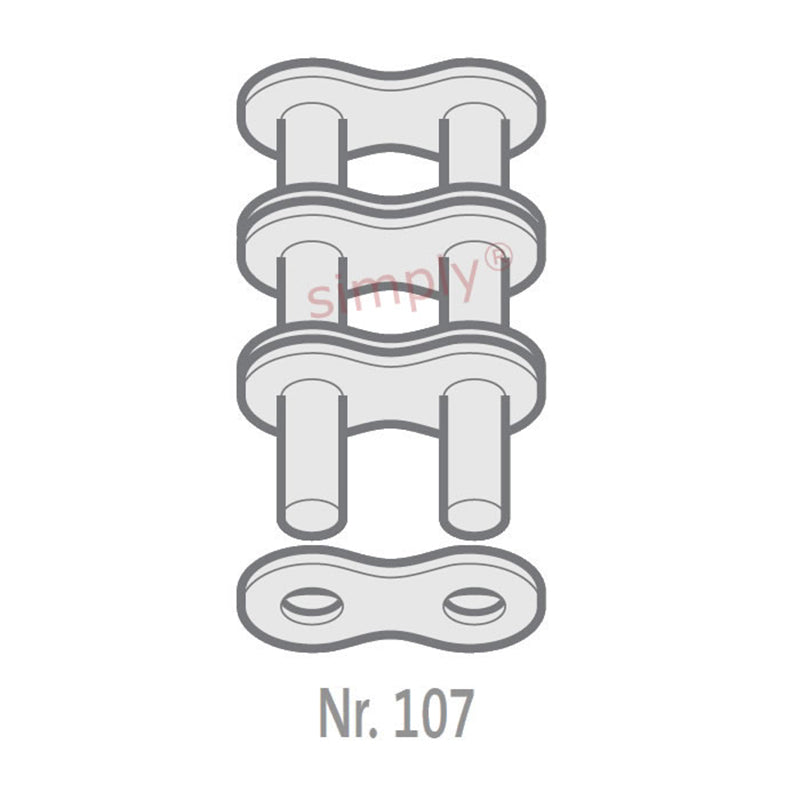

| Renold No. 107 ANSI Triplex Connecting Link: For use with all sizes and types of chain where optimum security is desired. The link is supplied with bearing pins riveted into one outer plate. The other outer plate is an interference fit on the bearing pins, the ends of which should be riveted over after the plate is fitted. Press fit connecting links should only be used once; new links must be used to replace dismantled links. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 44.45mm = 1.75 (1-3/4) inch
Technical
Technical
| Pitch (A) | 1.75 inch |
|---|---|
| Pitch (A) | 44.45mm |
| Inside Width min (B) | 25.23mm |
| Roller Diameter max (C) | 25.4mm |
| Plate Height max (D) | 42.23mm |
| Plate Width Inner max (E) | 5.61mm |
| Plate Width Outer max (F) | 5.61mm |
| Pin Diameter max (G) | 12.71mm |
| Pin Length max (H2) | 150.7mm |
| Connecting Link Extension max (J) | 5.2mm |
| Transverse Pitch nom (K) | 48.87mm |
| ISO606 Tensile Strength min | 510000 N |
| Weight | 1.167kg/m |
