SKU: 14x22x4.5_UNP_NAK
NAK 14x22x4.5mm UNP Polyurethane Symmetrical Seal
NAK 14x22x4.5mm UNP Polyurethane Symmetrical Seal
Regular price
CHF 3.63
ex VAT
Regular price
Sale price
CHF 3.63
ex VAT
In stock
Price Break
10+
CHF 3.23
19+
CHF 3.05
29+
CHF 3.01
39+
CHF 2.98
49+
CHF 2.94
74+
CHF 2.90
99+
CHF 2.72
199+
CHF 2.69
249+
CHF 2.65
499+
CHF 2.61
999+
CHF 2.54
Couldn't load pickup availability
Description
Description
NAK UNP Symmetrical Seals: UNP symmetrical seals are versatile, single-acting hydraulic seals featuring a symmetrical lip profile, designed for use in both piston and rod configurations. Their balanced geometry allows for flexible installation in either position, making them ideal for simplifying assembly in hydraulic systems.
Benefits: Reliable sealing, simplified installation, universal fit for both piston and rod applications
- Brand / Quality:
- NAK - High Quality
- Inside Diameter:
- 14mm
- Outside Diameter:
- 22mm
- Length:
- 4.5mm
- Material:
- Polyurethane
- Style:
- UNP
- Colour:
- Blue

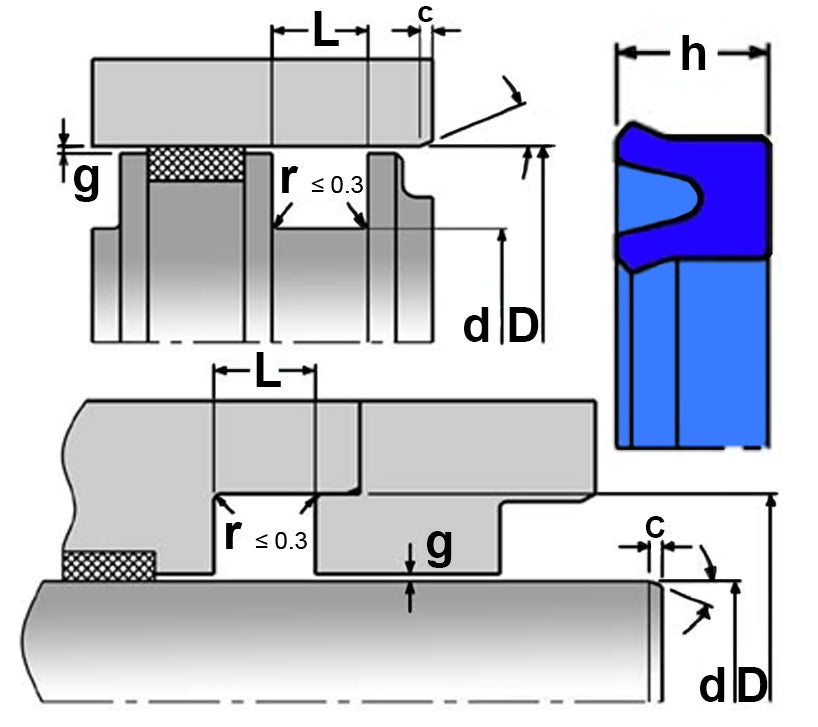

Technical
Technical
| d | 14mm |
|---|---|
| D | 22mm |
| L | 5.2mm |
| h | 4.5mm |
| C | 4mm |
| Inside Diameter Tolerance | h10 |
| Outside Diameter Tolerance | H9 |
| Length Tolerance | 0.2mm |
| Pressure (max) | 30 Mpa |
| Sliding Speed (max) | 0.5 m/s |
| Temperature | -40 Deg C to +100 Deg C |
| Colour | Blue |
