SKU: 160-2-BB-NO107-RENOLD
Renold Blue Box 160-2-NO107 ANSI / AS Duplex Chain Outer Link To Be Riveted 2 inch Pitch
Renold Blue Box 160-2-NO107 ANSI / AS Duplex Chain Outer Link To Be Riveted 2 inch Pitch
Regular price
CHF 330.00
ex VAT
Regular price
Sale price
CHF 330.00
ex VAT
In stock
Price Break
2+
CHF 262.24
5+
CHF 247.51
10+
CHF 244.57
29+
CHF 241.62
49+
CHF 238.67
75+
CHF 235.73
100+
CHF 220.99
200+
CHF 218.05
250+
CHF 215.10
500+
CHF 212.15
1000+
CHF 206.26
Description
Description

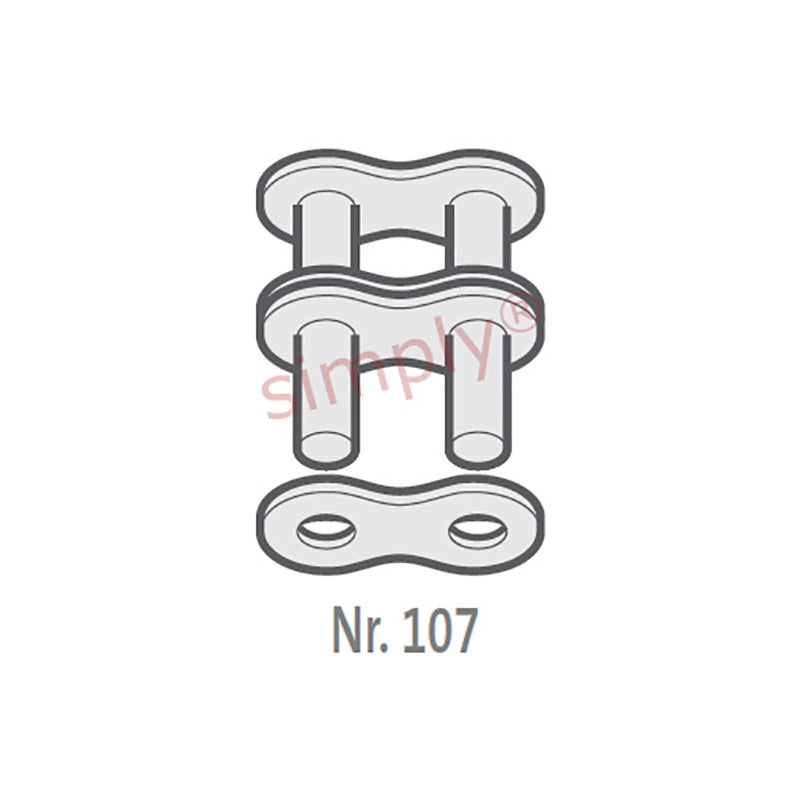

| Renold No. 107 ANSI Duplex Connecting Link: For use with all sizes and types of chain where optimum security is desired. The link is supplied with bearing pins riveted into one outer plate. The other outer plate is an interference fit on the bearing pins, the ends of which should be riveted over after the plate is fitted. Press fit connecting links should only be used once; new links must be used to replace dismantled links. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 50.8mm = 2 inch
Technical
Technical
| Pitch (A) | 2 inch |
|---|---|
| Pitch (A) | 50.8mm |
| Inside Width min (B) | 31.55mm |
| Roller Diameter max (C) | 28.58mm |
| Plate Height max (D) | 48.26mm |
| Plate Width Inner max (E) | 6.35mm |
| Plate Width Outer max (F) | 6.35mm |
| Pin Diameter max (G) | 14.29mm |
| Pin Length max (H2) | 121.6mm |
| Connecting Link Extension max (J) | 6.5mm |
| Transverse Pitch nom (K) | 58.55mm |
| ISO606 Tensile Strength min | 446000 N |
| Weight | 0.87kg/m |
