SKU: 16003-2Z-EU

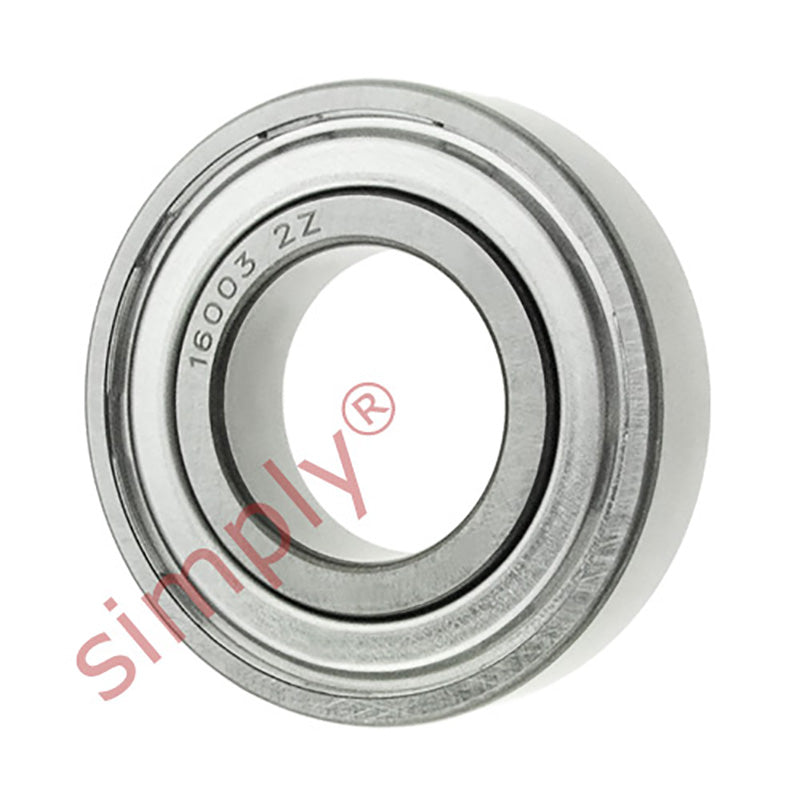

16003ZZ Budget Metal Shielded Deep Groove Ball Bearing 17x35x8mm
Equivalent to: 16003ZZE 16003ZZ 16003.2Z 16003KDD 16003DD 16003FF 160032ZR 16003ZZE 16003ZZ 160032ZR 160032RS2
In stock
Price Break
Couldn't load pickup availability
Description
|
Budget Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 16003ZZE 16003ZZ 16003.2Z 16003KDD 16003DD 16003FF 160032ZR 16003ZZE 16003ZZ 160032ZR 160032RS2
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 35mm
- Width:
- 8mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
| d | 17mm |
|---|---|
| D | 35mm |
| B | 8mm |
| r min | 0.3mm |
| Dynamic load Cr | 6 kN |
| Static load Cor | 3.25 kN |
| Speed in oil | 25000 rpm |
