SKU: 16004/C3-MB

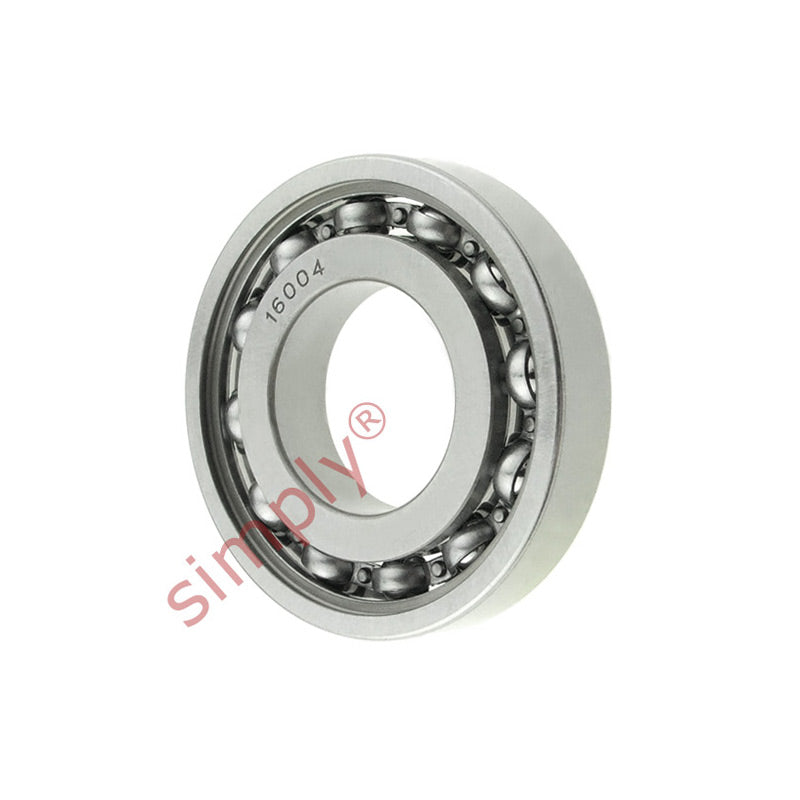

Major Brand 16004C3 Open Deep Groove Ball Bearing 20x42x8mm
Major Brand 16004C3 Open Deep Groove Ball Bearing 20x42x8mm
Regular price
CHF 9.00
ex VAT
Regular price
Sale price
CHF 9.00
ex VAT
Equivalent to: 16004 16004C3
In stock
Price Break
10+
CHF 6.63
19+
CHF 6.26
29+
CHF 6.19
39+
CHF 6.11
49+
CHF 6.04
74+
CHF 5.96
99+
CHF 5.59
199+
CHF 5.52
249+
CHF 5.44
499+
CHF 5.37
999+
CHF 5.22
Description
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
Equivalent: 16004 16004C3
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 42mm
- Width:
- 8mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 20mm |
|---|---|
| D | 42mm |
| B | 8mm |
| Dynamic load C | 7.28 kN |
| Static load Co | 4.05 kN |
| Fatigue load limit Pu | 0.173 kN |
| Reference speed | 38000 rpm |
| Limiting speed | 24000 rpm |
| Mass | 0.05 kg |
| d1 | 27.3mm |
| D1 | 34.6mm |
| r1r2 min | 0.3mm |
| da min | 22mm |
| Da max | 40mm |
| ra max | 0.3mm |
| Calc factor Kr | 0.02 |
| Calc factor | 15 |
