• SKF 16007C3 Open Deep Groove Ball Bearing 35x62x9mm
1 1

SKU: 16007/C3-SKF

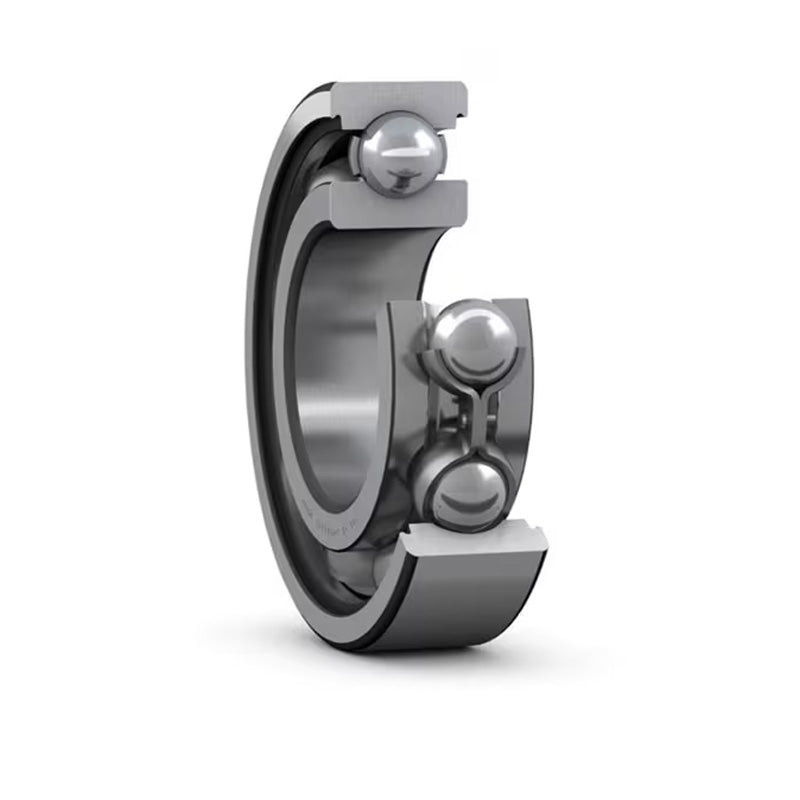

SKF 16007C3 Open Deep Groove Ball Bearing 35x62x9mm

SKF 16007C3 Open Deep Groove Ball Bearing 35x62x9mm
CHF 18.00 ex VAT
CHF 18.00 ex VAT
Sale Sold out

In stock

Price Break
4+ CHF 14.20
10+ CHF 13.40
20+ CHF 13.24
30+ CHF 13.08
50+ CHF 12.92
75+ CHF 12.76
100+ CHF 11.96
200+ CHF 11.80
250+ CHF 11.64
500+ CHF 11.48
1000+ CHF 11.17
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost effective solution

Brand / Quality:
SKF - High Quality
Inside Diameter:
35mm
Outside Diameter:
62mm
Width:
9mm
Seals / Shields:
None
Clearance:
C3
Technical
d 35mm
D 62mm
B 9mm
Dynamic load 13 kN
Static load 8.15 kN
Fatigue load limit Pu 0.38 kN
Reference speed 24000 rpm
Limiting speed 15000 rpm
Weight 0.11 kg
d1 44.1mm
D1 53mm
D2 n/amm
r1r2 min 0.3mm
da min 37mm
Da max 60mm
ra max 0.3mm
Calculation factor kr 0.02
Calculation factor Cor 14
