SKU: 16007-NTN

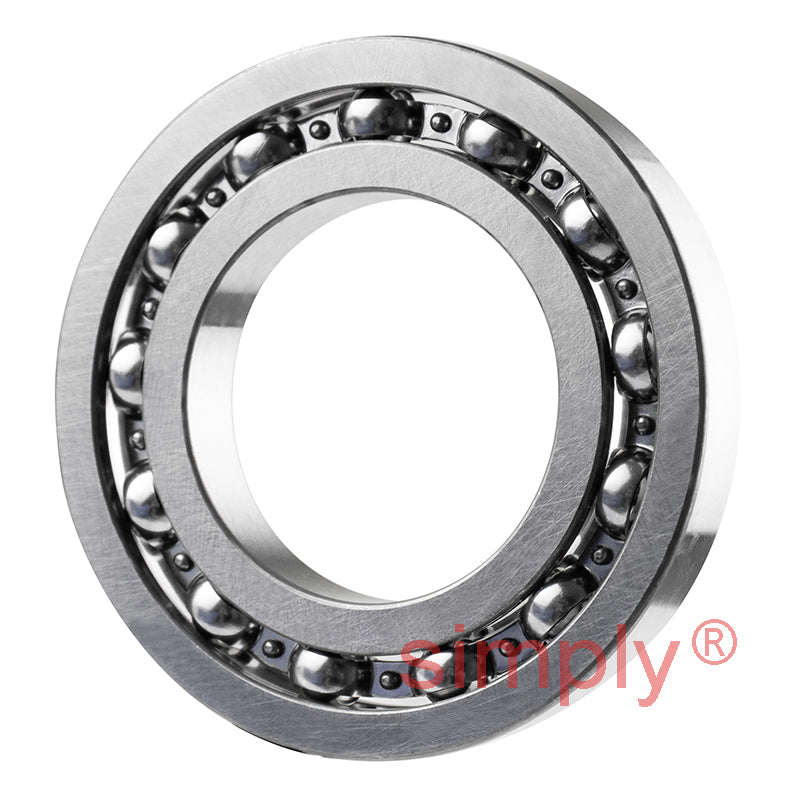

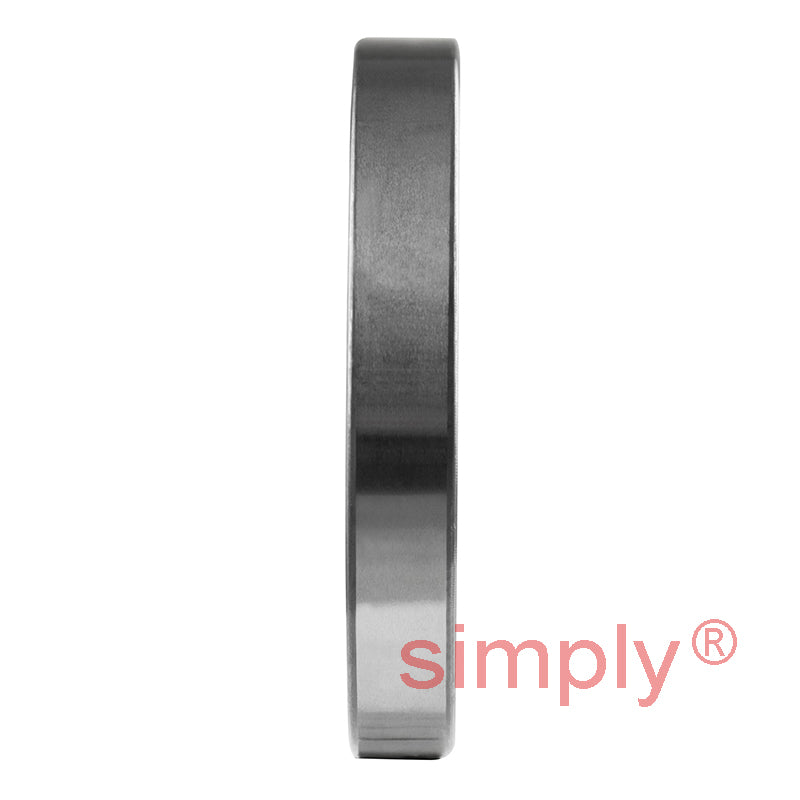

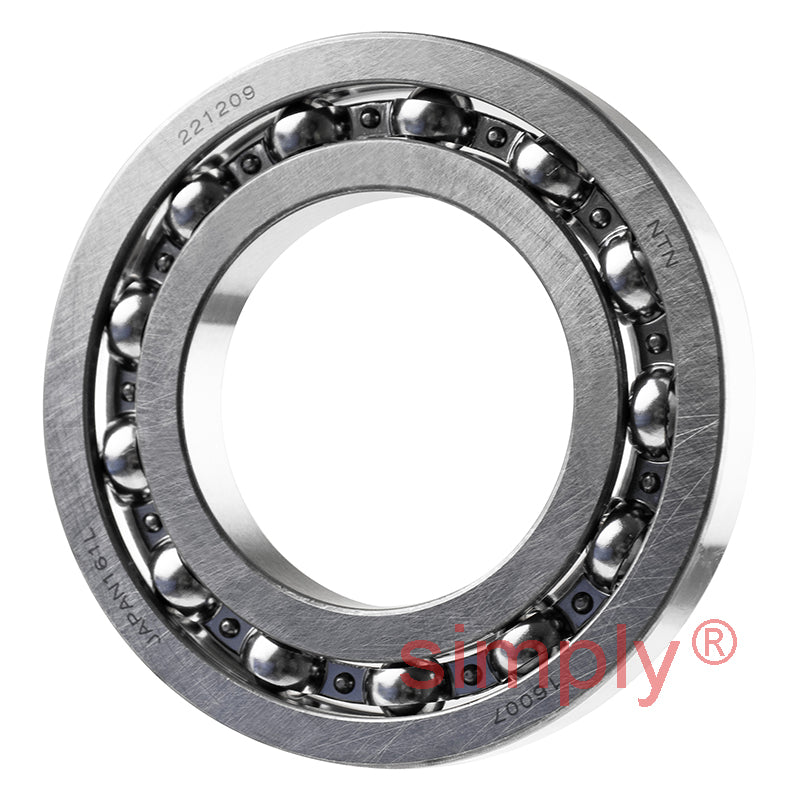

NTN 16007 Open Type Deep Groove Ball Bearing 35x62x9mm
NTN 16007 Open Type Deep Groove Ball Bearing 35x62x9mm
Regular price
CHF 14.02
ex VAT
Regular price
Sale price
CHF 14.02
ex VAT
Equivalent to: 16007CM EL35 ELL35
In stock
Price Break
10+
CHF 12.48
19+
CHF 11.78
29+
CHF 11.64
39+
CHF 11.50
49+
CHF 11.36
74+
CHF 11.22
99+
CHF 10.52
199+
CHF 10.37
249+
CHF 10.23
499+
CHF 10.09
999+
CHF 9.81
Couldn't load pickup availability
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 16007CM EL35 ELL35
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 62mm
- Width:
- 9mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 35mm |
| D | 62mm |
| B | 9mm |
| r<sub>s</sub> min | 0.3mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 12.9 kN |
| C<sub>or</sub> | 8.2 kN |
| C<sub>u</sub> | 0.605 kN |
| f<sub>0</sub> | 15.6 kN |
| Grease | 12000 rpm |
| Oil | 14000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 37mm |
| D<sub>a</sub> Max. | 60mm |
| r<sub>as</sub> Max. | 0.3mm |
| Weight | 0.11 kg |
