SKU: 16009/C3-MB

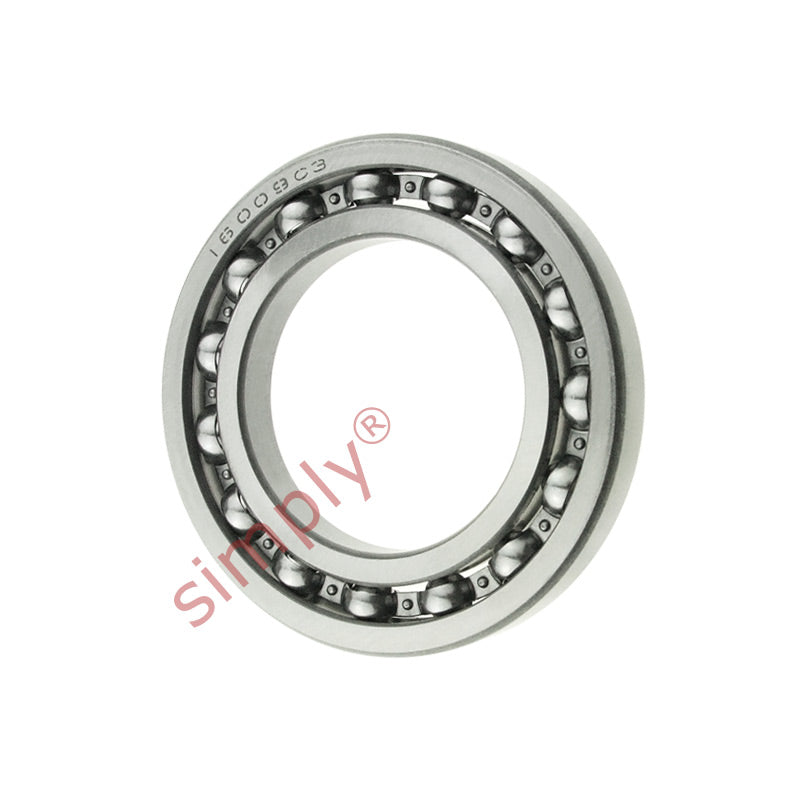

Major Brand 16009C3 Open Deep Groove Ball Bearing 45x75x10mm
Major Brand 16009C3 Open Deep Groove Ball Bearing 45x75x10mm
Regular price
CHF 9.00
ex VAT
Regular price
Sale price
CHF 9.00
ex VAT
Equivalent to: 16009 16009C3
In stock
Price Break
10+
CHF 7.08
19+
CHF 6.68
29+
CHF 6.60
39+
CHF 6.52
49+
CHF 6.44
74+
CHF 6.36
99+
CHF 5.96
199+
CHF 5.88
249+
CHF 5.80
499+
CHF 5.72
999+
CHF 5.57
Description
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
Equivalent: 16009 16009C3
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 75mm
- Width:
- 10mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 45mm |
|---|---|
| D | 75mm |
| B | 10mm |
| Dynamic load C | 16.5 kN |
| Static load Co | 10.8 kN |
| Fatigue load limit Pu | 0.52 kN |
| Reference speed | 20000 rpm |
| Limiting speed | 12000 rpm |
| Mass | 0.17 kg |
| d1 | 55mm |
| D1 | 65.4mm |
| r1r2 min | 0.6mm |
| da min | 48.2mm |
| Da max | 71.8mm |
| ra max | 0.6mm |
| Calc factor Kr | 0.02 |
| Calc factor | 14 |
