SKU: 16011-MB

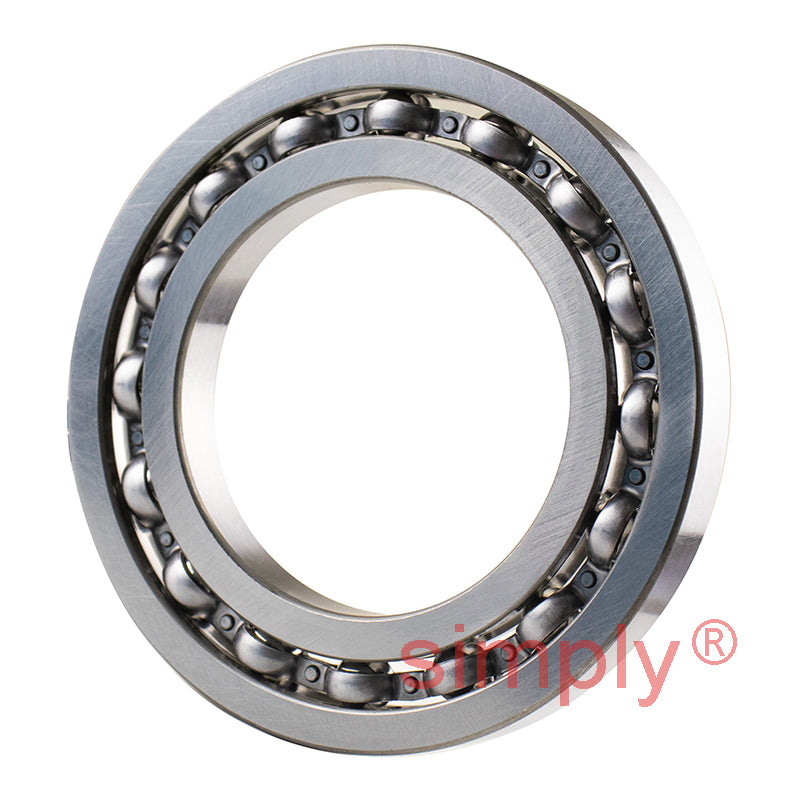

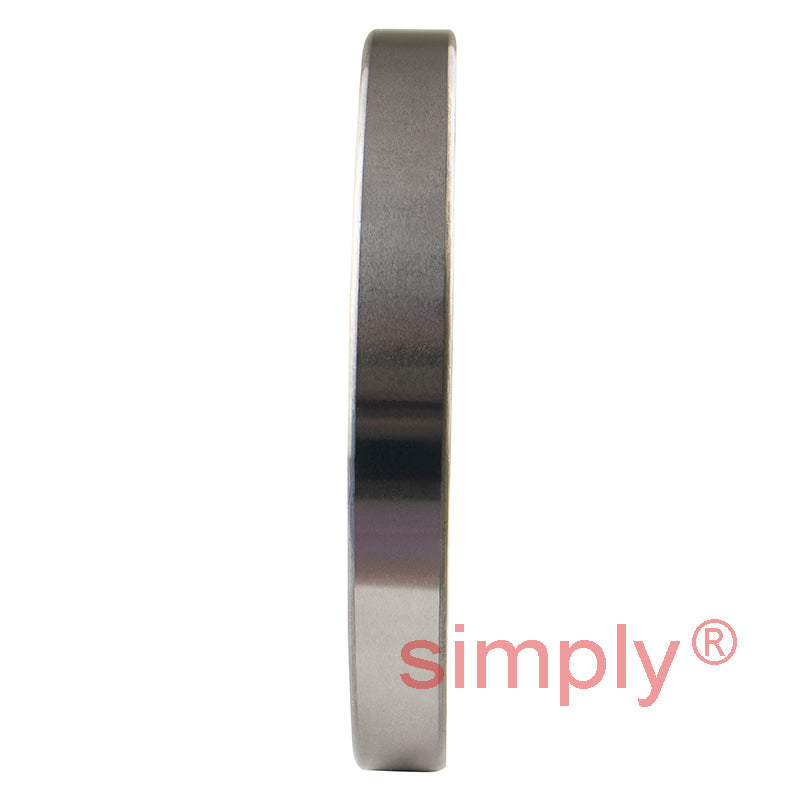

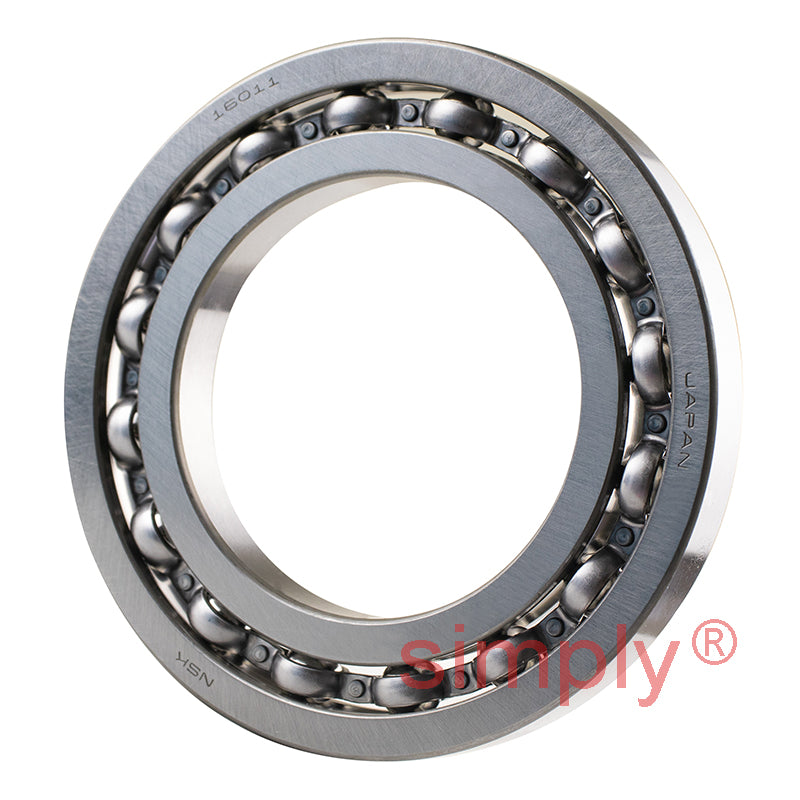

Major Brand 16011 Open Deep Groove Ball Bearing 55x90x11mm
Major Brand 16011 Open Deep Groove Ball Bearing 55x90x11mm
Regular price
CHF 19.00
ex VAT
Regular price
Sale price
CHF 19.00
ex VAT
In stock
Price Break
10+
CHF 14.98
19+
CHF 14.14
29+
CHF 13.97
39+
CHF 13.80
49+
CHF 13.63
74+
CHF 13.46
99+
CHF 12.62
199+
CHF 12.45
249+
CHF 12.29
499+
CHF 12.12
999+
CHF 11.78
Description
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 90mm
- Width:
- 11mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 55mm |
|---|---|
| D | 90mm |
| B | 11mm |
| Dynamic load C | 20.3 kN |
| Static load Co | 14 kN |
| Fatigue load limit Pu | 0.7 kN |
| Reference speed | 16000 rpm |
| Limiting speed | 10000 rpm |
| Mass | 0.26 kg |
| d1 | 67mm |
| D1 | 78.1mm |
| r1r2 min | 0.6mm |
| da min | 58.2mm |
| Da max | 86.8mm |
| ra max | 0.6mm |
| Calc factor Kr | 0.02 |
| Calc factor | 15 |
