SKU: 16012-FAG

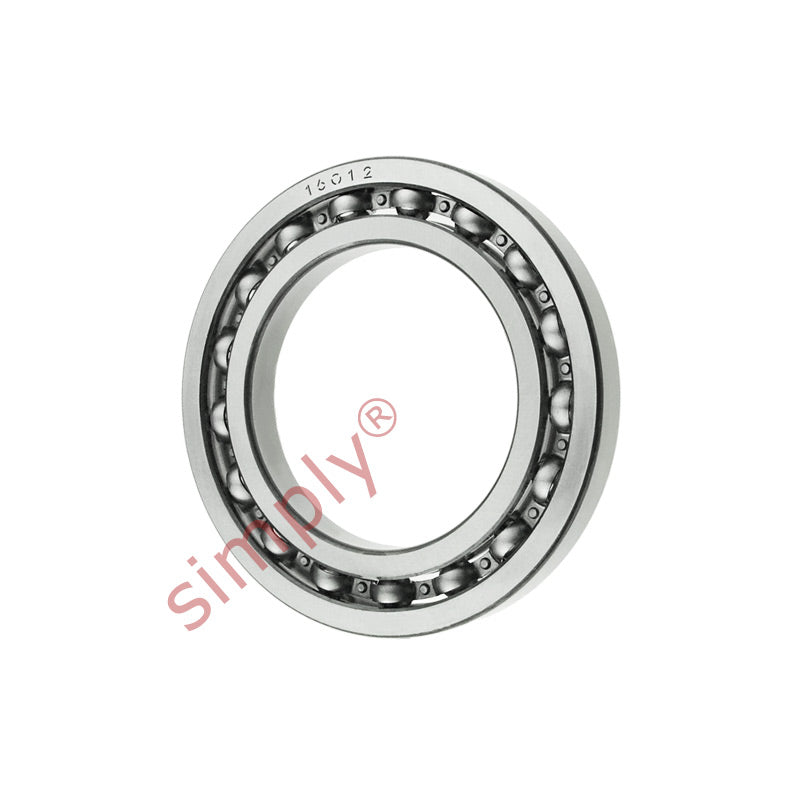

FAG 16012 Open Deep Groove Ball Bearing 60x95x11mm
FAG 16012 Open Deep Groove Ball Bearing 60x95x11mm
Regular price
CHF 30.00
ex VAT
Regular price
Sale price
CHF 30.00
ex VAT
In stock
Price Break
10+
CHF 23.57
19+
CHF 22.24
29+
CHF 21.98
39+
CHF 21.71
49+
CHF 21.45
74+
CHF 21.18
99+
CHF 19.86
199+
CHF 19.60
249+
CHF 19.33
499+
CHF 19.07
999+
CHF 18.54
Description
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 95mm
- Width:
- 11mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 60mm |
|---|---|
| D | 95mm |
| B | 11mm |
| Dynamic load C | 20.8 kN |
| Static load Co | 15 kN |
| Fatigue load limit Pu | 0.74 kN |
| Reference speed | 15000 rpm |
| Limiting speed | 9500 rpm |
| Mass | 0.28 kg |
| d1 | 72mm |
| D1 | 83mm |
| r1r2 min | 0.6mm |
| da min | 63.2mm |
| Da max | 91.8mm |
| ra max | 0.6mm |
| Calc factor Kr | 0.02 |
| Calc factor | 14 |
