SKU: 16012-NTN

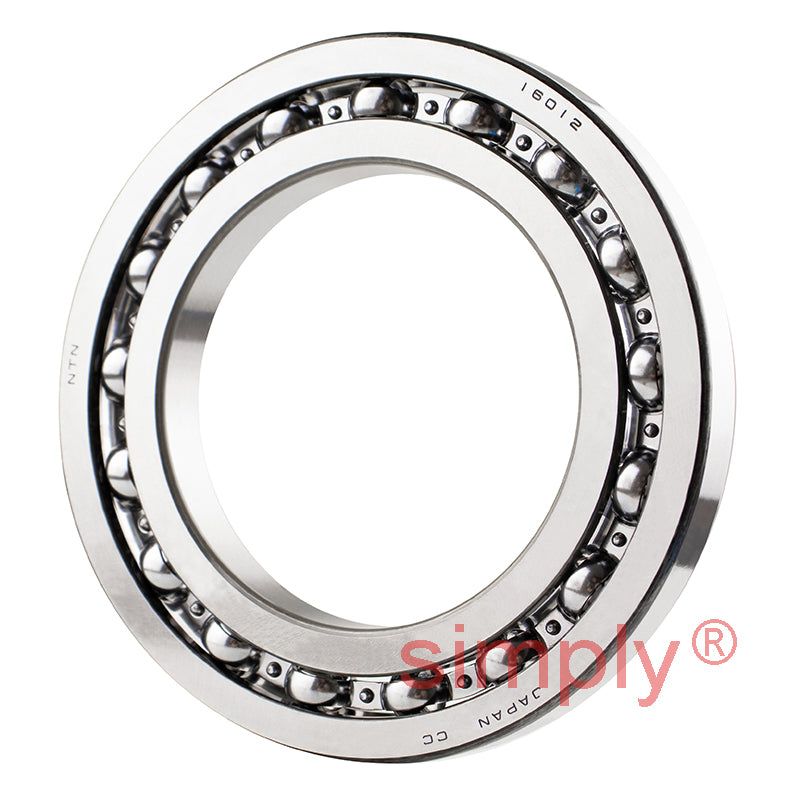

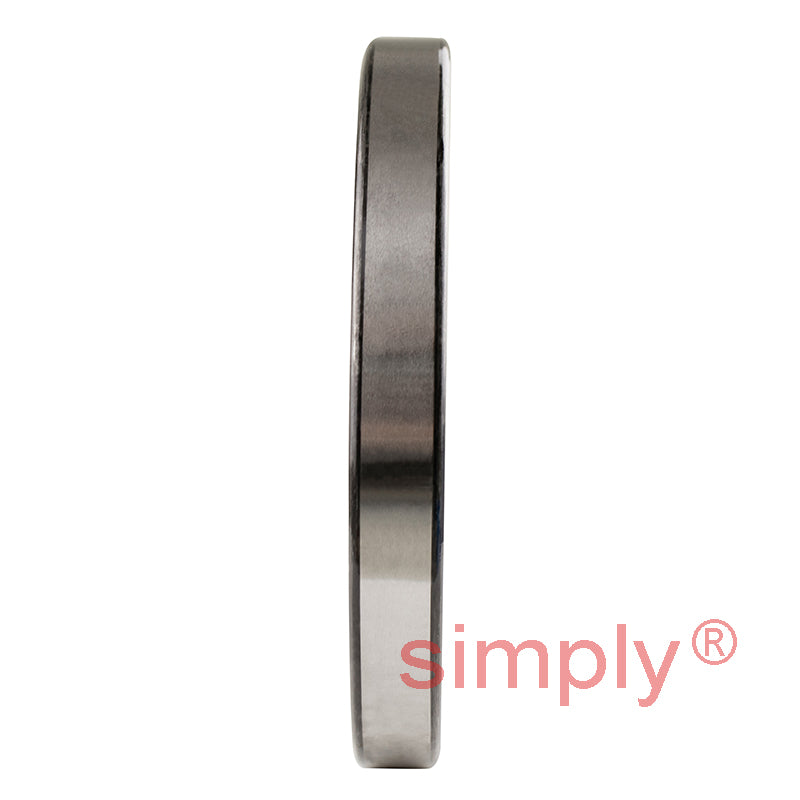

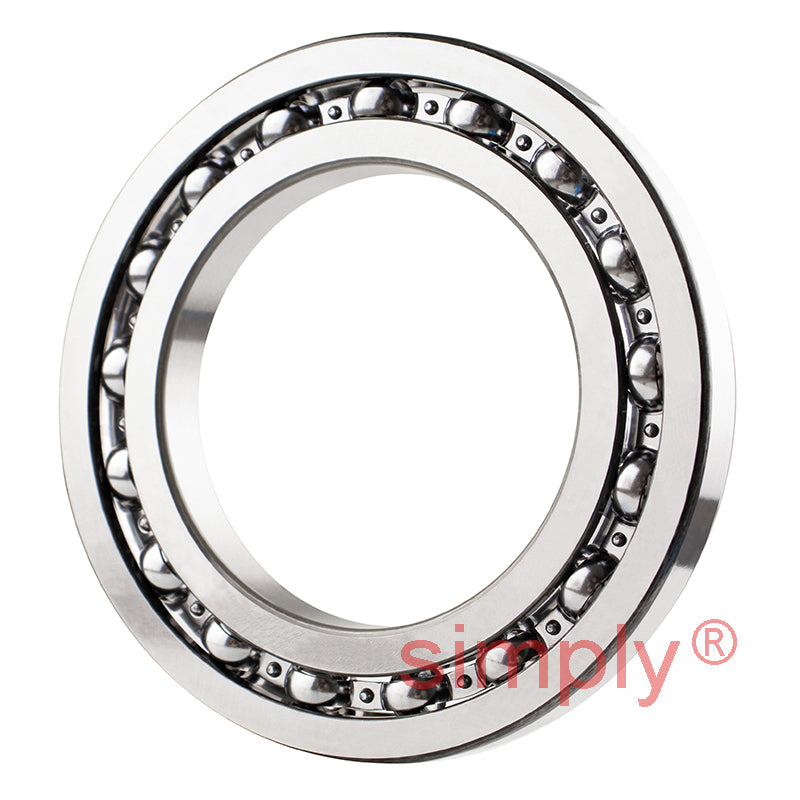

NTN 16012 Open Type Deep Groove Ball Bearing 60x95x11mm
NTN 16012 Open Type Deep Groove Ball Bearing 60x95x11mm
Regular price
CHF 28.00
ex VAT
Regular price
Sale price
CHF 28.00
ex VAT
Equivalent to: 16012CM ELN60 ELLN60
In stock
Price Break
3+
CHF 21.60
5+
CHF 20.39
10+
CHF 20.14
25+
CHF 19.90
49+
CHF 19.66
74+
CHF 19.42
99+
CHF 18.20
199+
CHF 17.96
249+
CHF 17.72
499+
CHF 17.47
999+
CHF 16.99
Share this product
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 16012CM ELN60 ELLN60
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 95mm
- Width:
- 11mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 60mm |
| D | 95mm |
| B | 11mm |
| r<sub>s</sub> min | 0.6mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 22.1 kN |
| C<sub>or</sub> | 17.5 kN |
| C<sub>u</sub> | 1.2 kN |
| f<sub>0</sub> | 16.3 kN |
| Grease | 7000 rpm |
| Oil | 8300 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 64mm |
| D<sub>a</sub> Max. | 91mm |
| r<sub>as</sub> Max. | 0.6mm |
| Weight | 0.283 kg |
