SKU: 16014/C3-MB

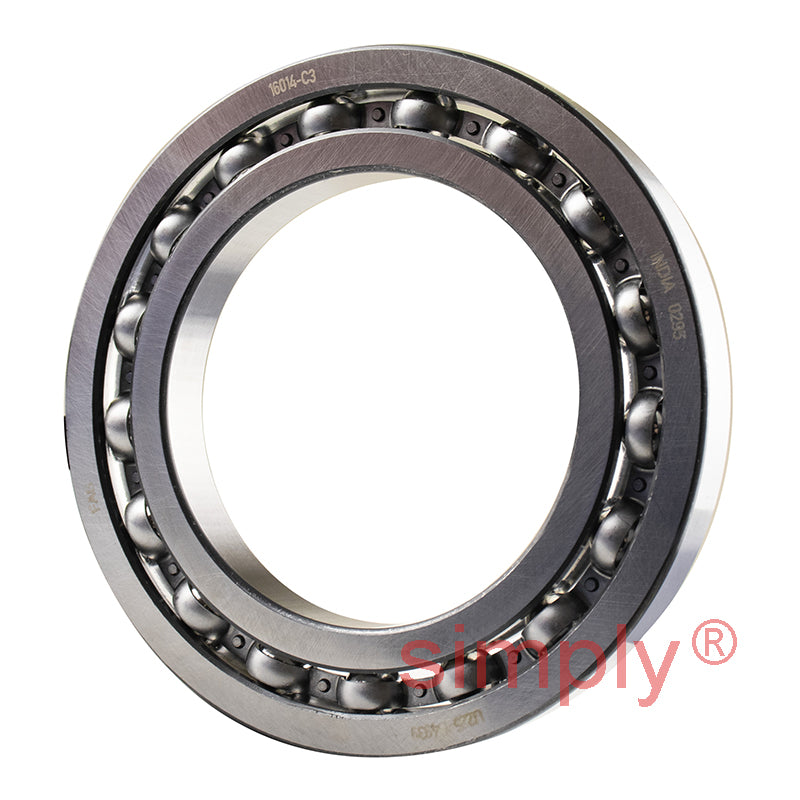

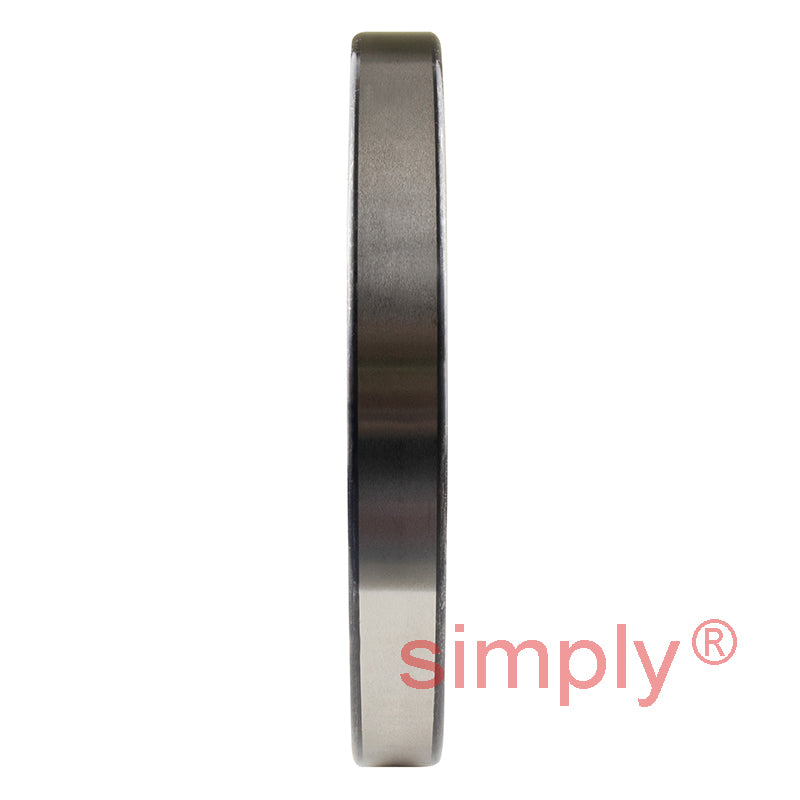

Major Brand 16014C3 Open Deep Groove Ball Bearing 70x110x13mm
Major Brand 16014C3 Open Deep Groove Ball Bearing 70x110x13mm
Regular price
CHF 50.00
ex VAT
Regular price
Sale price
CHF 50.00
ex VAT
Equivalent to: 16014 16014C3
In stock
Price Break
10+
CHF 39.15
19+
CHF 36.95
29+
CHF 36.51
39+
CHF 36.07
49+
CHF 35.63
74+
CHF 35.19
99+
CHF 32.99
199+
CHF 32.55
249+
CHF 32.11
499+
CHF 31.67
999+
CHF 30.79
Description
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
Equivalent: 16014 16014C3
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 110mm
- Width:
- 13mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 70mm |
|---|---|
| D | 110mm |
| B | 13mm |
| Dynamic load C | 29.1 kN |
| Static load Co | 25 kN |
| Fatigue load limit Pu | 1.06 kN |
| Reference speed | 13000 rpm |
| Limiting speed | 8000 rpm |
| Mass | 0.43 kg |
| d1 | 83.3mm |
| D1 | 96.8mm |
| r1r2 min | 0.6mm |
| da min | 73.2mm |
| Da max | 106mm |
| ra max | 0.6mm |
| Calc factor Kr | 0.02 |
| Calc factor | 16 |
