SKU: 16014-NTN

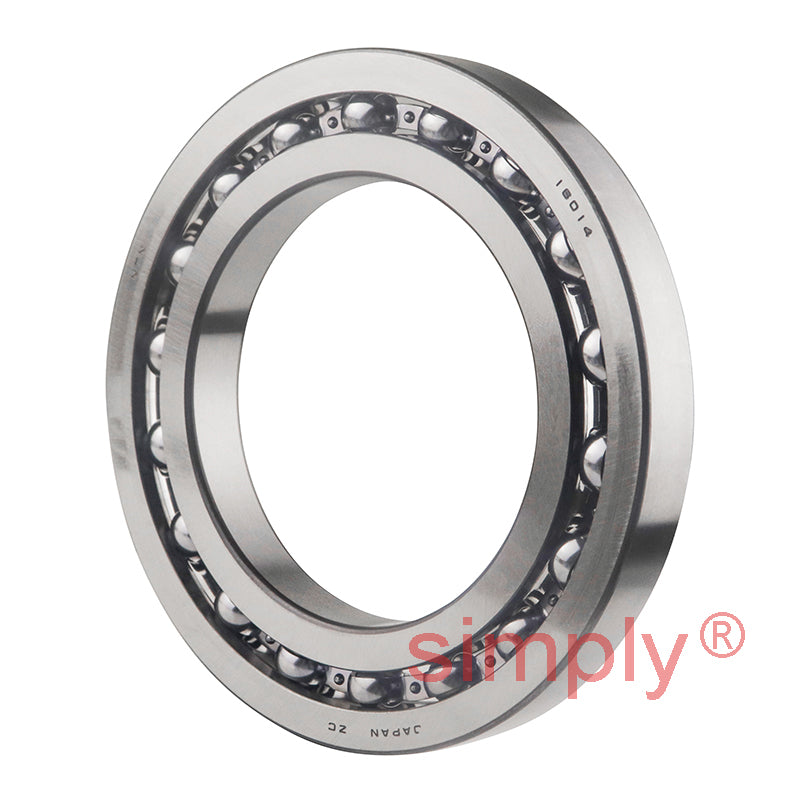

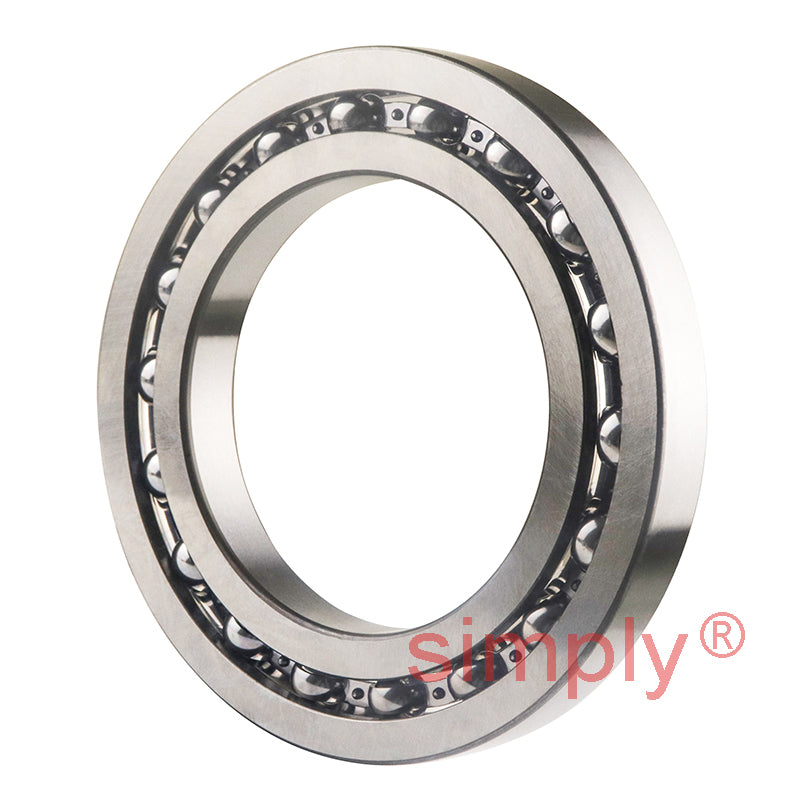

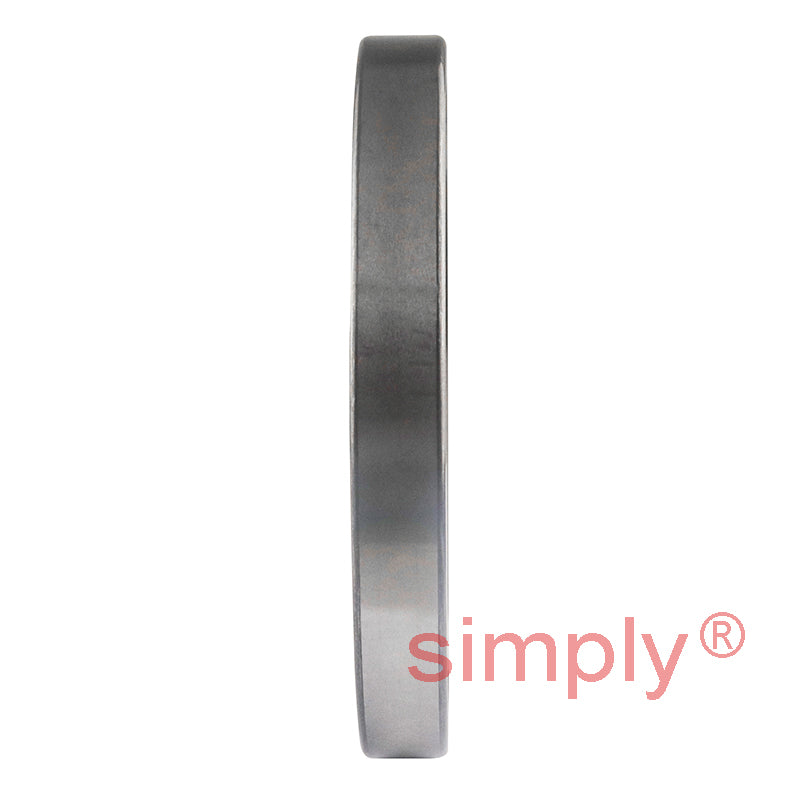

NTN 16014 Open Type Deep Groove Ball Bearing 70x110x13mm
NTN 16014 Open Type Deep Groove Ball Bearing 70x110x13mm
Regular price
CHF 38.00
ex VAT
Regular price
Sale price
CHF 38.00
ex VAT
Equivalent to: 16014CM ELN70 ELLN70
In stock
Price Break
3+
CHF 29.85
5+
CHF 28.17
10+
CHF 27.84
25+
CHF 27.50
49+
CHF 27.17
74+
CHF 26.83
99+
CHF 25.16
199+
CHF 24.82
249+
CHF 24.48
499+
CHF 24.15
999+
CHF 23.48
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 16014CM ELN70 ELLN70
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 110mm
- Width:
- 13mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 70mm |
| D | 110mm |
| B | 13mm |
| r<sub>s</sub> min | 0.6mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 27 kN |
| C<sub>or</sub> | 22.6 kN |
| C<sub>u</sub> | 1.52 kN |
| f<sub>0</sub> | 16.5 kN |
| Grease | 6100 rpm |
| Oil | 7100 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 74mm |
| D<sub>a</sub> Max. | 106mm |
| r<sub>as</sub> Max. | 0.6mm |
| Weight | 0.441 kg |
