SKU: 16017-NTN

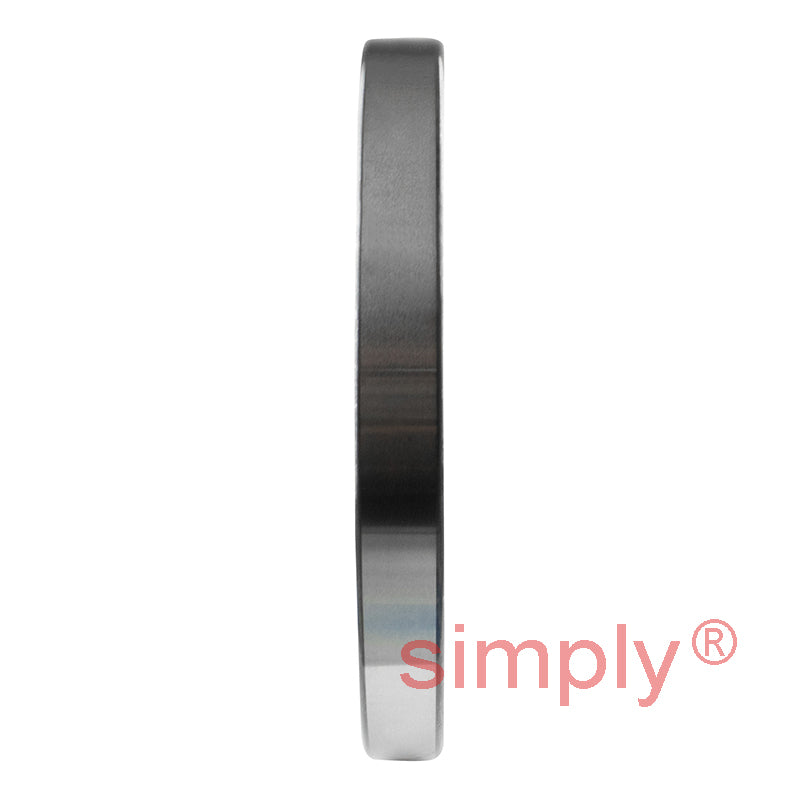

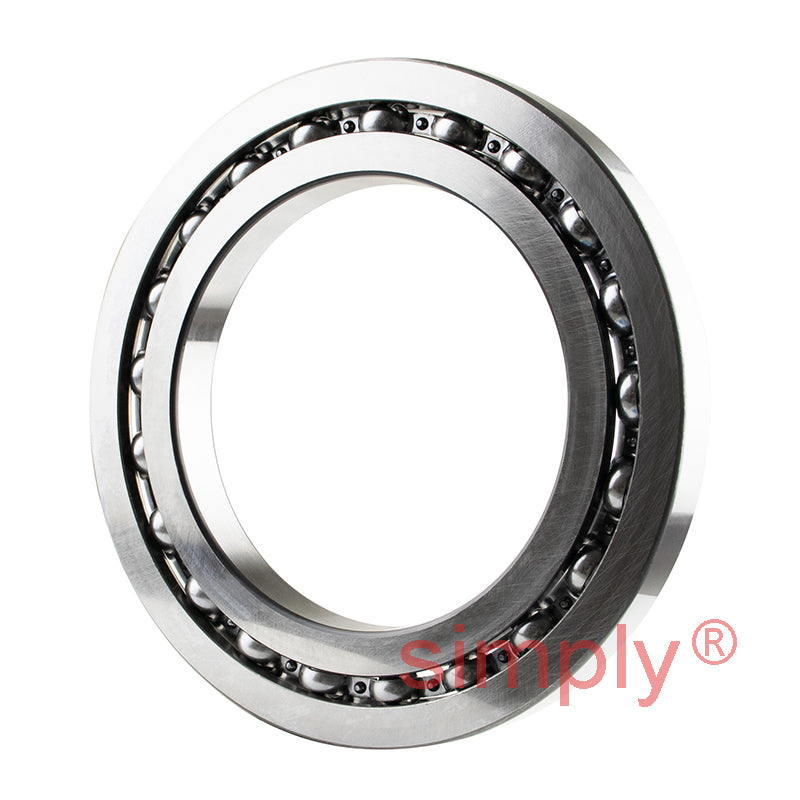

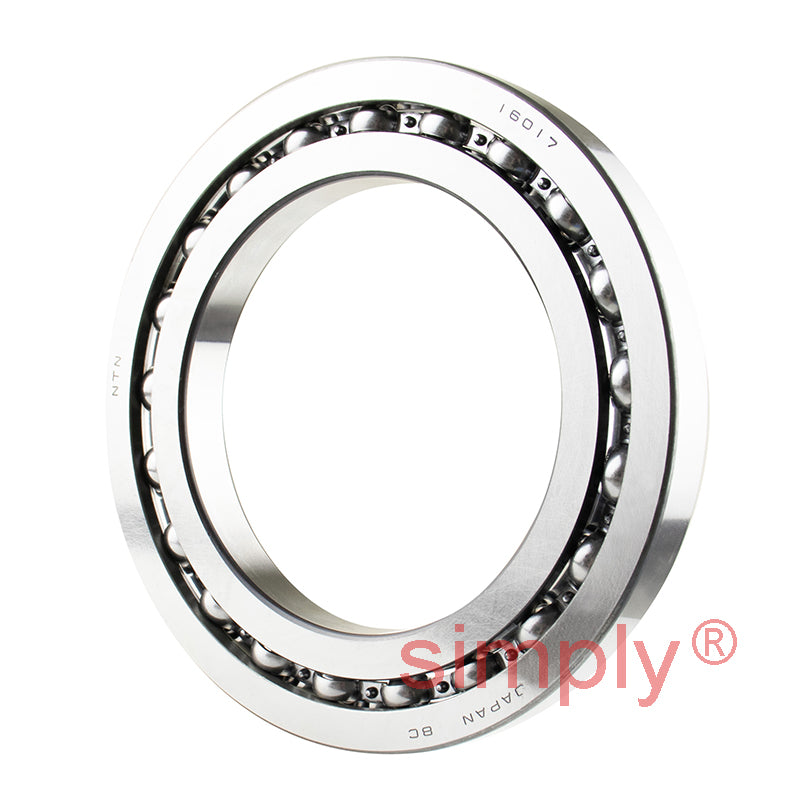

NTN 16017 Open Type Deep Groove Ball Bearing 85x130x14mm
NTN 16017 Open Type Deep Groove Ball Bearing 85x130x14mm
Regular price
CHF 49.00
ex VAT
Regular price
Sale price
CHF 49.00
ex VAT
Equivalent to: 16017CM EL85 ELL85
In stock
Price Break
3+
CHF 38.88
5+
CHF 36.69
10+
CHF 36.25
25+
CHF 35.82
49+
CHF 35.38
74+
CHF 34.94
99+
CHF 32.76
199+
CHF 32.32
249+
CHF 31.89
499+
CHF 31.45
999+
CHF 30.58
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 16017CM EL85 ELL85
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 85mm
- Outside Diameter:
- 130mm
- Width:
- 14mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 85mm |
| D | 130mm |
| B | 14mm |
| r<sub>s</sub> min | 0.6mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 28.7 kN |
| C<sub>or</sub> | 26.2 kN |
| C<sub>u</sub> | 1.68 kN |
| f<sub>0</sub> | 16.4 kN |
| Grease | 5000 rpm |
| Oil | 5900 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 89mm |
| D<sub>a</sub> Max. | 126mm |
| r<sub>as</sub> Max. | 0.6mm |
| Weight | 0.626 kg |
