SKU: 16019-MB

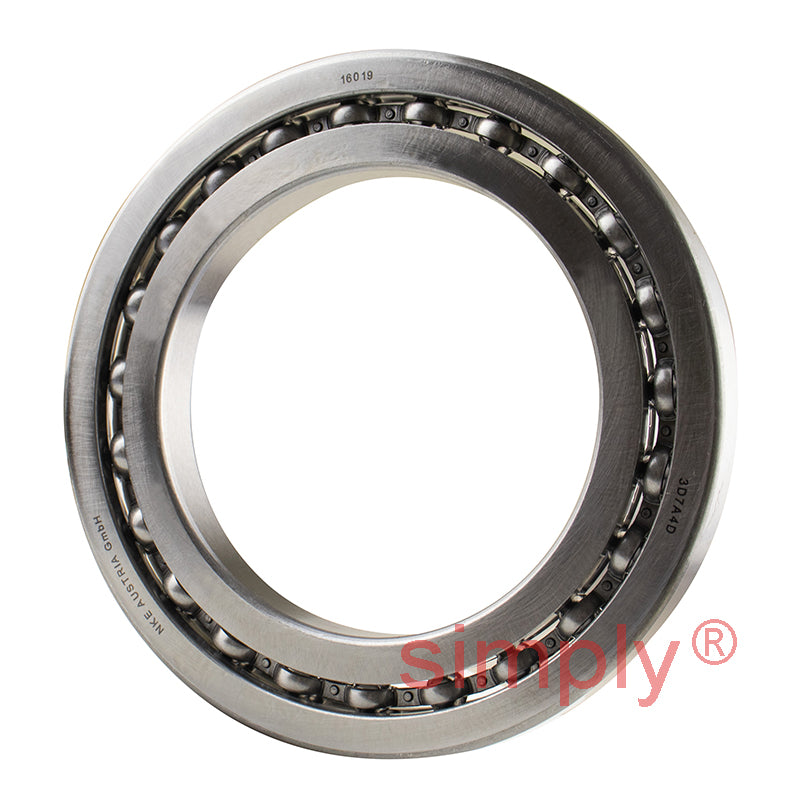

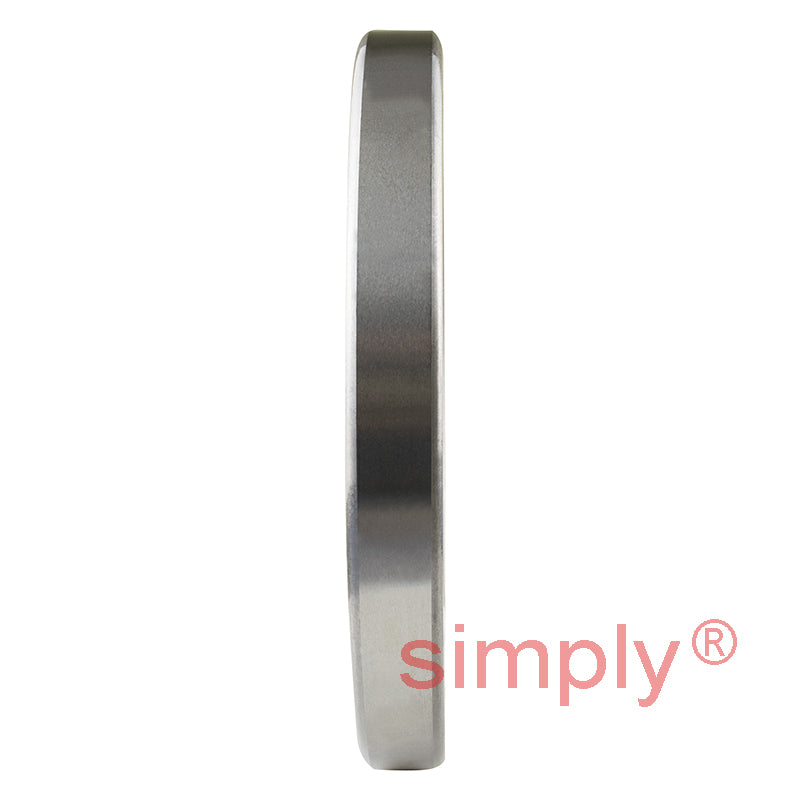

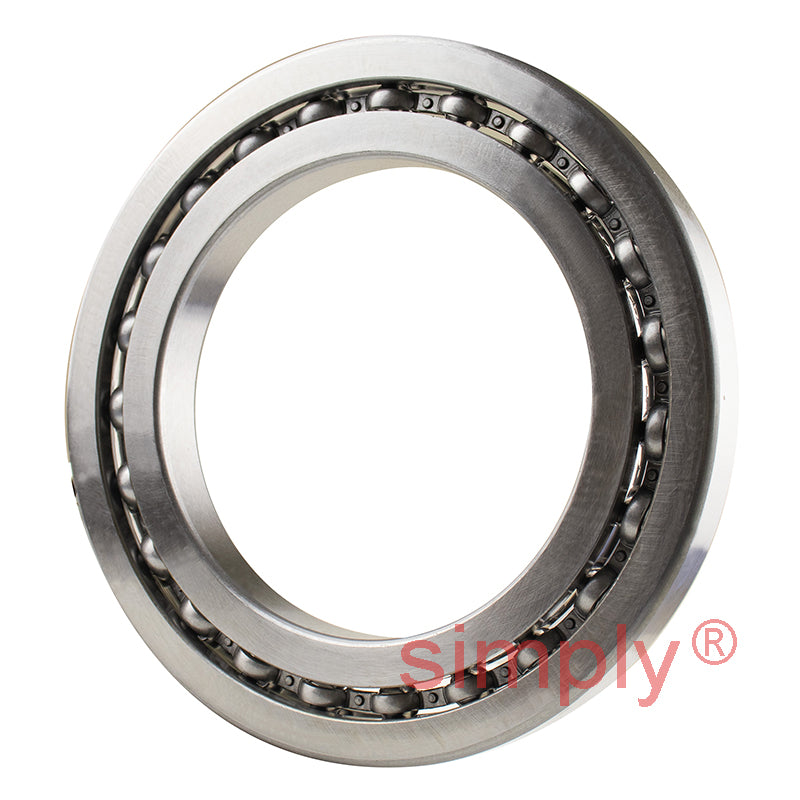

Major Brand 16019 Open Deep Groove Ball Bearing 95x145x16mm
Major Brand 16019 Open Deep Groove Ball Bearing 95x145x16mm
Regular price
CHF 64.59
ex VAT
Regular price
Sale price
CHF 64.59
ex VAT
In stock
Price Break
10+
CHF 57.49
19+
CHF 54.26
29+
CHF 53.61
39+
CHF 52.96
49+
CHF 52.32
74+
CHF 51.67
99+
CHF 48.44
199+
CHF 47.80
249+
CHF 47.15
499+
CHF 46.50
999+
CHF 45.21
Couldn't load pickup availability
Description
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 95mm
- Outside Diameter:
- 145mm
- Width:
- 16mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 95mm |
|---|---|
| D | 145mm |
| B | 16mm |
| Dynamic load C | 44.8 kN |
| Static load Co | 41.5 kN |
| Fatigue load limit Pu | 1.63 kN |
| Reference speed | 9500 rpm |
| Limiting speed | 6000 rpm |
| Mass | 0.89 kg |
| d1 | 112mm |
| D1 | 128mm |
| r1r2 min | 1mm |
| da min | 99.6mm |
| Da max | 140mm |
| ra max | 1mm |
| Calc factor Kr | 0.02 |
| Calc factor | 16 |
