SKU: 16020-MB

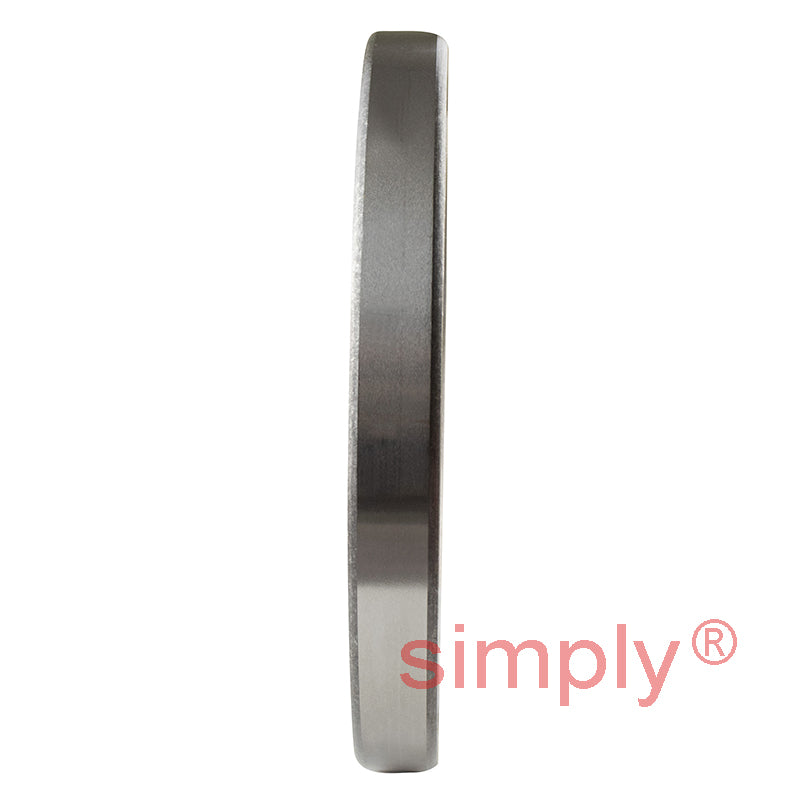

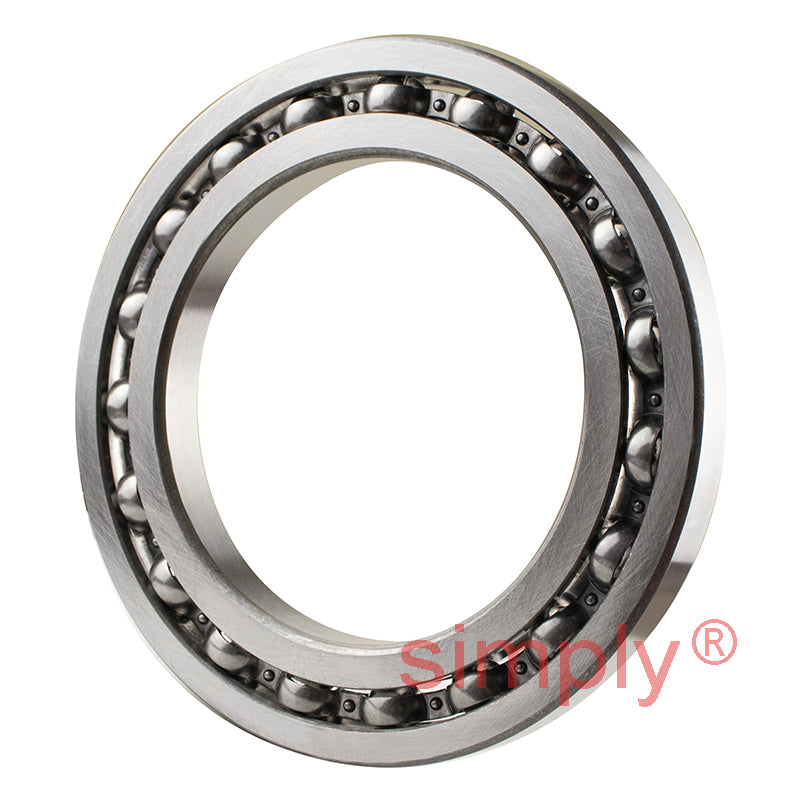

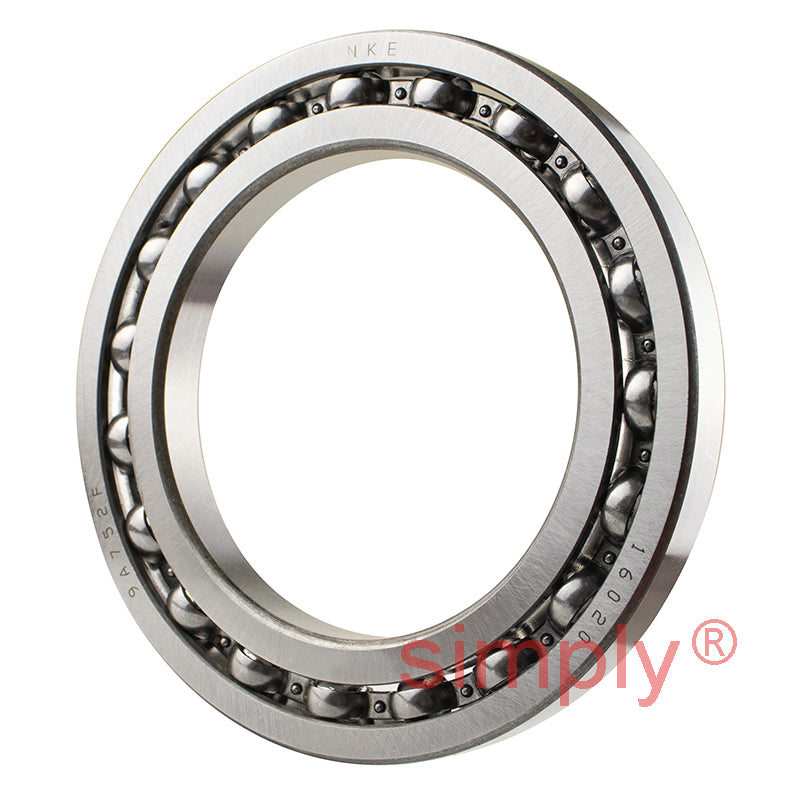

Major Brand 16020 Open Deep Groove Ball Bearing 100x150x16mm
Major Brand 16020 Open Deep Groove Ball Bearing 100x150x16mm
Regular price
CHF 75.00
ex VAT
Regular price
Sale price
CHF 75.00
ex VAT
In stock
Price Break
10+
CHF 59.61
19+
CHF 56.26
29+
CHF 55.59
39+
CHF 54.92
49+
CHF 54.25
74+
CHF 53.58
99+
CHF 50.24
199+
CHF 49.57
249+
CHF 48.90
499+
CHF 48.23
999+
CHF 46.89
Description
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 150mm
- Width:
- 16mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 100mm |
|---|---|
| D | 150mm |
| B | 16mm |
| Dynamic load C | 46.2 kN |
| Static load Co | 44 kN |
| Fatigue load limit Pu | 1.73 kN |
| Reference speed | 9500 rpm |
| Limiting speed | 5600 rpm |
| Mass | 0.91 kg |
| d1 | 116mm |
| D1 | 134mm |
| r1r2 min | 1mm |
| da min | 105mm |
| Da max | 145mm |
| ra max | 1mm |
| Calc factor Kr | 0.02 |
| Calc factor | 17 |
