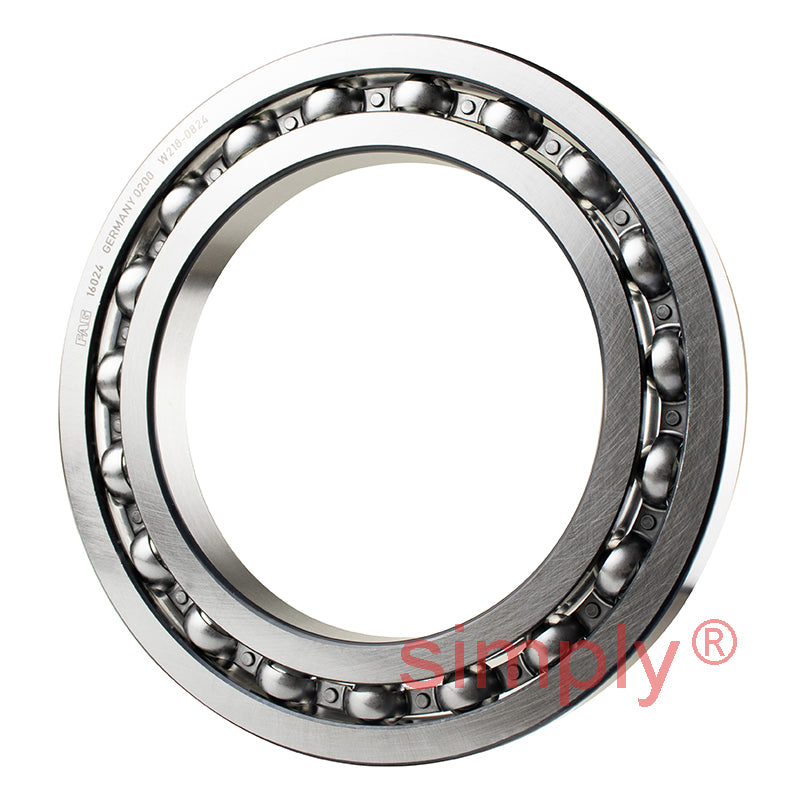

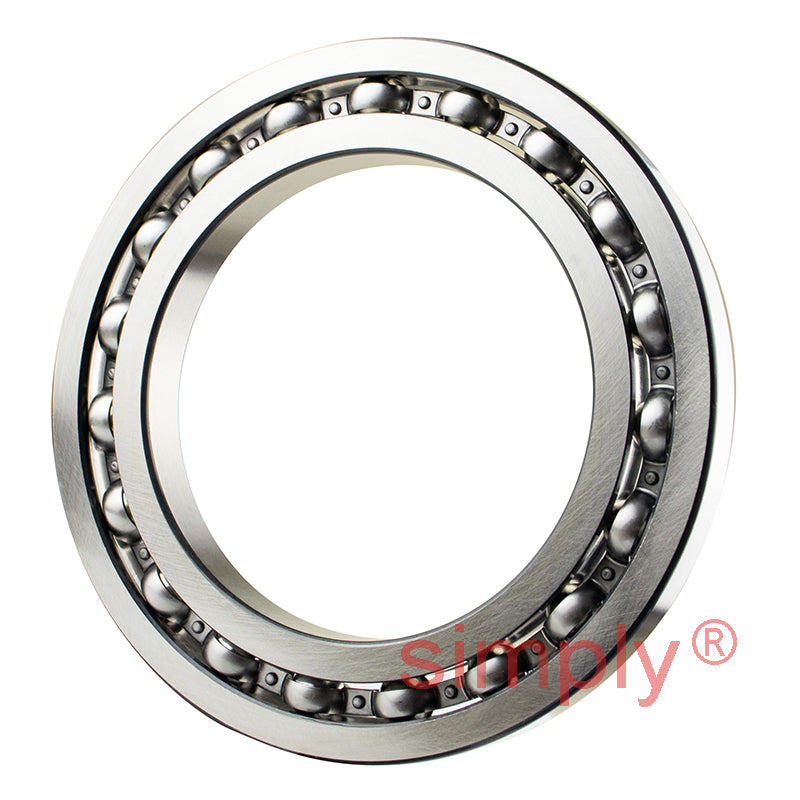

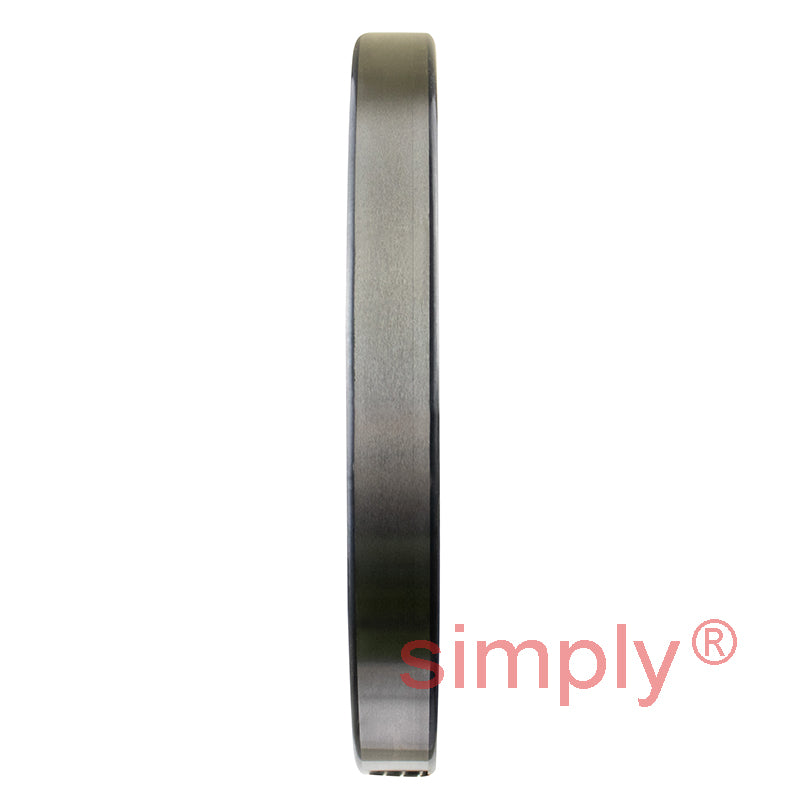

Major Brand 16024 Open Deep Groove Ball Bearing 120x180x19mm
Major Brand 16024 Open Deep Groove Ball Bearing 120x180x19mm
Regular price
CHF 163.00
ex VAT
Regular price
Sale price
CHF 163.00
ex VAT
In stock
Price Break
10+
CHF 129.23
19+
CHF 121.97
29+
CHF 120.52
39+
CHF 119.07
49+
CHF 117.62
74+
CHF 116.17
99+
CHF 108.91
199+
CHF 107.45
249+
CHF 106.00
499+
CHF 104.55
999+
CHF 101.64
Share this product
Description
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 120mm
- Outside Diameter:
- 180mm
- Width:
- 19mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 120mm |
|---|---|
| D | 180mm |
| B | 19mm |
| Dynamic load C | 63.7 kN |
| Static load Co | 64 kN |
| Fatigue load limit Pu | 2.2 kN |
| Reference speed | 7500 rpm |
| Limiting speed | 4800 rpm |
| Mass | 1.6 kg |
| d1 | 139mm |
| D1 | 161mm |
| r1r2 min | 1mm |
| da min | 125mm |
| Da max | 175mm |
| ra max | 1mm |
| Calc factor Kr | 0.02 |
| Calc factor | 17 |
