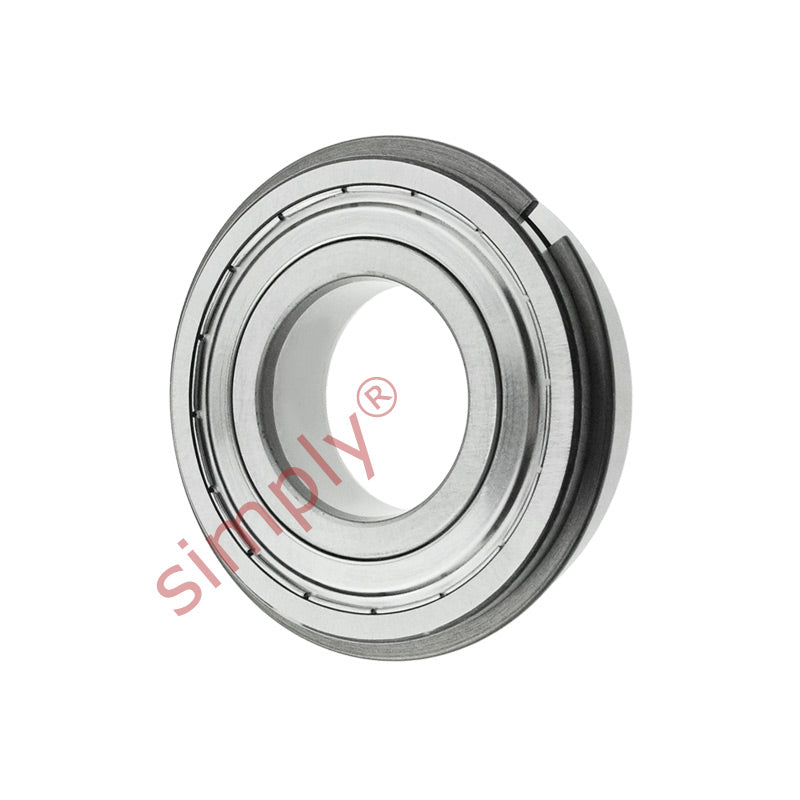

FAG 1638ZZNR Metal Shielded with a Snap Ring Deep Groove Ball Bearing 0.75x2x0.5625 inch

Metal Shielded Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame, these bearing types are manufactured with metal shields inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side.
Benefits: Prevents moisture and dirt getting into the bearing, lubricated for life, snap ring location in housings, open and metal shielded options available

Brand / Quality:

FAG - High Quality

Inside Diameter:

19.05mm = 0.75 (3/4) inch

Outside Diameter:

50.8mm = 2 inch

Width:

14.29mm = 0.563 (9/16) inch

Seals / Shields:

Metal Shielded

Clearance:

* Standard

Snap Ring:

Snap Ring
