SKU: 16B-1-5MTR-MB
Branded 16B-1 BS Simplex Roller Chain 1 inch Pitch 5 Metres
Branded 16B-1 BS Simplex Roller Chain 1 inch Pitch 5 Metres
Regular price
CHF 88.00
ex VAT
Regular price
Sale price
CHF 88.00
ex VAT
Equivalent to: 16B1
In stock
Price Break
2+
CHF 69.40
5+
CHF 65.50
10+
CHF 64.72
29+
CHF 63.94
49+
CHF 63.16
75+
CHF 62.38
100+
CHF 58.48
200+
CHF 57.70
250+
CHF 56.92
500+
CHF 56.14
1000+
CHF 54.58
Description
Description
Major Branded Roller Chain: Manufactured to BS228, ISO 606, DIN8187, DIN8188 standards with hardened pins which prevent wear and stretch and also make it easy to dismantle. Roller chains are designed for demanding industrial and agricultural drives. Consistent quality, high-quality product.
Comprehensive range of simplex, duplex and triplex roller chains in British standard and American standard. Heavy-duty American standard roller chains are also available for extra tough conditions.
Equivalent: 16B1
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 25.4mm = 1 inch

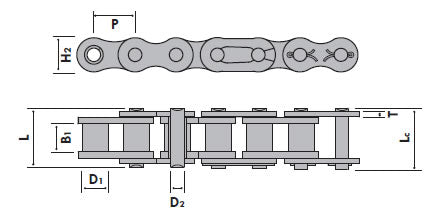

Technical
Technical
| Pitch (P) | 25.4mm = 1 inch |
|---|---|
| Roller Diameter (D1 max) | 15.88mm |
| Width between inner plates (B1 min) | 17.02mm |
| Pin dia meter (D2 max) | 8.28mm |
| Pin length (L max) | 26.1mm |
| Pin length (Lc max) | 37.4mm |
| Inner plate depth (H2 max) | 21mm |
| Plate thickness (T max) | 4.15/3.1mm |
| Ultimate tensile strength (Q min) kN/LB | 60.0/13636 |
| Average tensile strength (Q0) kN | 72.8 |
| Weight per meter (q) kg/m | 2.71 |
