SKU: 16B-2-BB-NO26-RENOLD
Renold Blue Box 16B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 1 inch Pitch
Renold Blue Box 16B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 1 inch Pitch
Regular price
CHF 16.00
ex VAT
Regular price
Sale price
CHF 16.00
ex VAT
In stock
Price Break
2+
CHF 12.13
5+
CHF 11.45
10+
CHF 11.31
29+
CHF 11.18
49+
CHF 11.04
75+
CHF 10.90
100+
CHF 10.22
200+
CHF 10.09
250+
CHF 9.95
500+
CHF 9.81
1000+
CHF 9.54
Description
Description

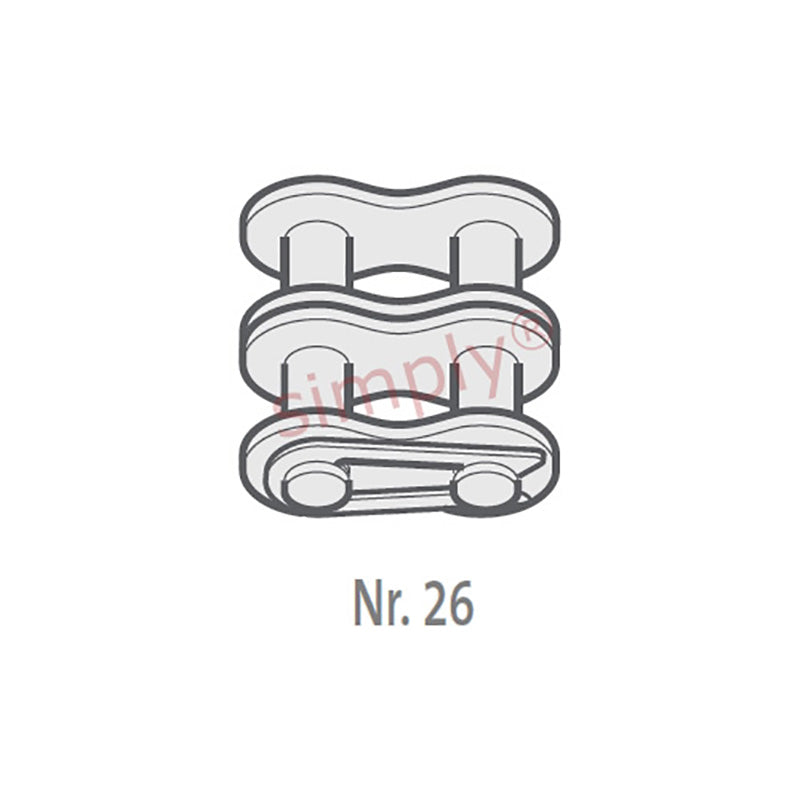

| Renold No. 26 European (BS) Duplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 25.4mm = 1 inch
Technical
Technical
| Pitch (A) | 1 inch |
|---|---|
| Pitch (A) | 25.4mm |
| Inside Width min (B) | 17.02mm |
| Roller Diameter max (C) | 15.88mm |
| Plate Height max (D) | 21.08mm |
| Plate Width Inner max (E) | 3.76mm |
| Plate Width Outer max (F) | 3.1mm |
| Pin Diameter max (G) | 8.28mm |
| Pin Length max (H1) | 66.8mm |
| Connecting Link Extension max (J) | 2.2mm |
| ISO606 Tensile Strength min | 106000 N |
| Weight | 0.046kg/m |
